W22L100-65A3

W22L100-65A3

ART. NR.:: 55763400

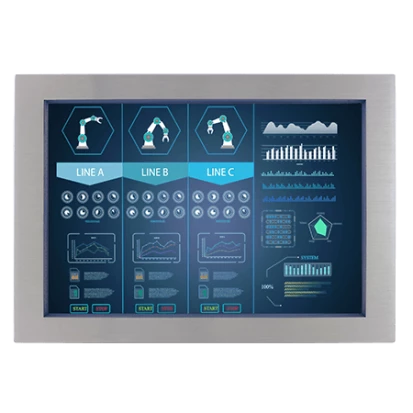

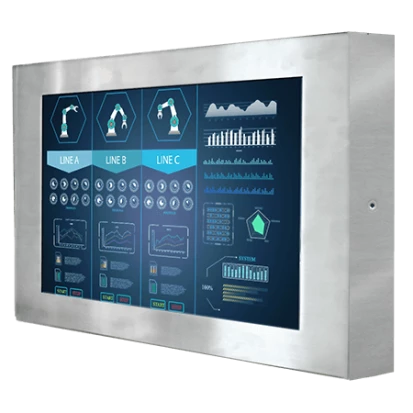

21,5" TFT LCD Monitor, VGA Input, VESA Mounting, IP65, stainless steel, 1920x1080, 1000:1,12V DC in with IP65 Connector

Preis auf Anfrage

Aufbau

Gehäuse

Gehärteter Stahl

Einbaumöglichkeit

Wall VESA 100

Schutzlevel Gehäuse

IP65

Display

Bildschirmtyp

LCD TFT

Diagonale

21.5 "

Maximale Auflösung

1920x1080 Dots

Helligkeit

250 Cd/m2

Kontrastverhältnis

3000~1

Input Schnittstelle

VGA

Touch Screen

Touch Screen Art

resistiv

Schnittstellen

Schnittstellen

M12 USB, M12 DC-in, M12 VGA

Stromversorgung

Eingangsspannung DC

12..12 V

Betriebsbedingungen

Maximale Betriebstemperatur

0..40 °C

Maße und Gewicht

Breite

550 mm

Höhe

340 mm

Tiefe

58.6 mm

Maße

Bruttogewicht

10 kg

Nettogewicht

10 kg

Dokumente

W22L100-65A3.pdf

Produktanfrage

ART. NR.:: 55763400

W22L100-65A3

W22L100-65A3
