W26IH3S-MRA1FP

W26IH3S-MRA1FP

Winmate
ART. NR.:: 56539600

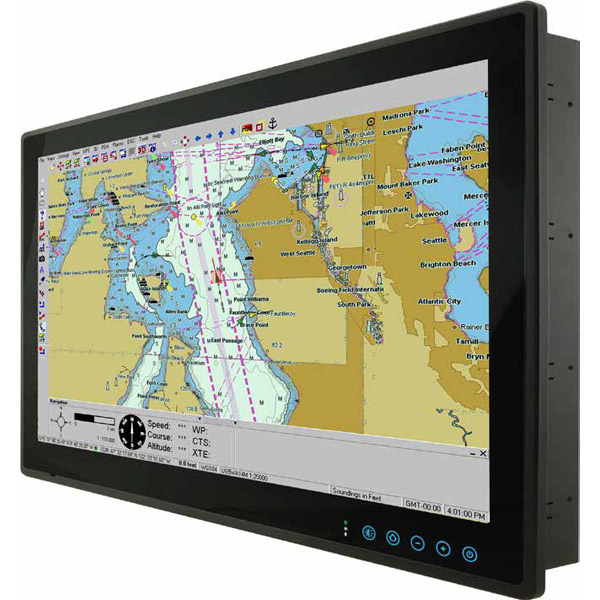

Marine Fanless Panel PC 26" (1920 x 1200) 350cd/m2, capacitive touch, Intel i5-5200U 2.2GHz, 4GB DDR3, 64GB SSD, 2xCOM, 2xLAN, 3xUSB, HDMI, Audio, PSU 24V DC (9~36V),IEC 60945 4th, IACS-E10, CE, FCC
Abgekündigt

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Panel, Wall VESA 100, VESA 200x100
Schutzlevel Frontseite (Panel)
IP66
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
26 "
Maximale Auflösung
1920x1080 Dots
Helligkeit
350 Cd/m2
Kontrastverhältnis
5000~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Broadwell
Installierter Prozessor
Intel Core i5-5350U
Socket
FCBGA1168
Maximale CPU-Frequenz
2.9 GHz
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i218-LM 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232/422/485
1
USB gesamt
3
USB 2.0
1
USB v3.x
2
Digital Eingang / Ausgang
Gesamtanzahl
8
Schnittstelle
mSATA
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
mSATA
Massenspeicher-Schnittstelle
SATA
Massenspeicher 1. Kapazität
128 GB
Steckplätze
Gesamtanzahl
1
Mini-PCIe/Mini Card
1
Status LEDs / Schalter
Schalter
On/Off, Kontrolltasten
Schnittstellen
Schnittstellen
DB9, HDMI, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
9..36 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Ubuntu, Windows 10 IoT Enterprise, Windows 10
Maße und Gewicht
Breite
621 mm
Höhe
432.4 mm
Tiefe
85.5 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-15..55 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
Marine Standard
DNV, IACS-E10, IEC 60945 4th
Maße
Bruttogewicht
11.5 kg
Nettogewicht
9.5 kg

Dokumente
Datasheet_W26IH3S_MRA1FP__32539573.pdf
