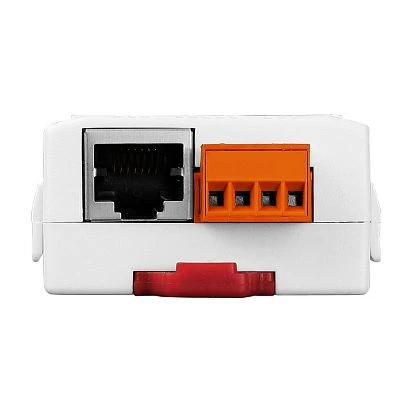

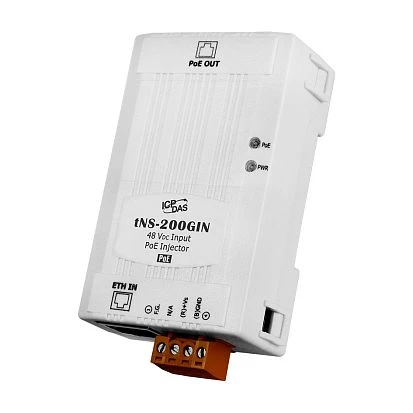

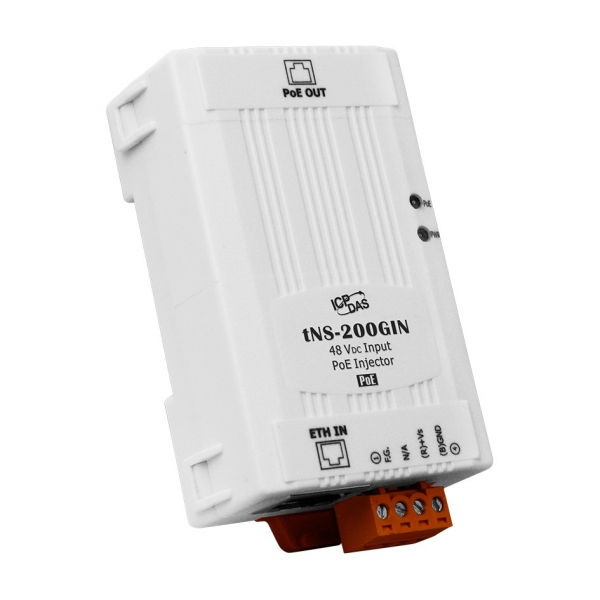

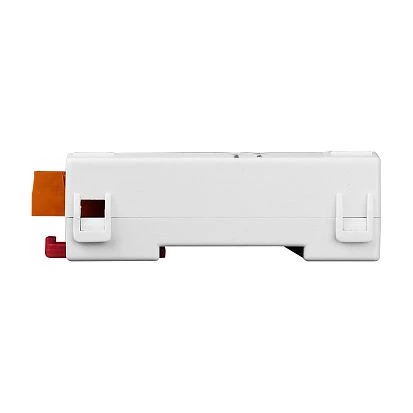

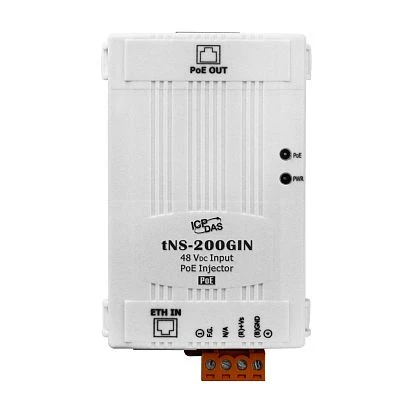

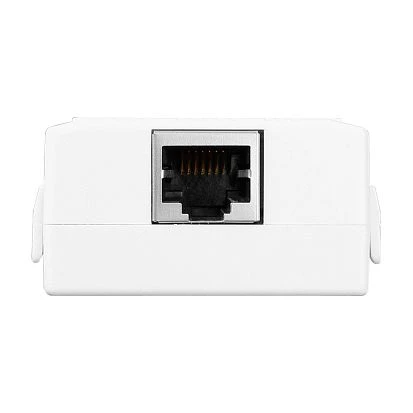

tNS-200GIN

tNS-200GIN

ART. NR.:: 08457200

Gigabit PoE Injector for 1 PoE port (uses unused pairs), up to 30W, 48 V input (RoHS)

Preis auf Anfrage

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Typ 10/100/1000 Mbit/s

2xRJ-45

PoE+ 10/100/1000 Mbit/s

1

Schnittstellen

Schnittstellen

Screw Terminal

Systemleistung

Eingangsspannung DC

46..53 V

Aufbau

Gehäuse

Kunststoffgehäuse

Einbaumöglichkeit

DIN-Rail mount

Maße und Gewicht

Breite

52 mm

Tiefe

27 mm

Höhe

86 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..75 °C

Maße

Bruttogewicht

0.1 kg

Nettogewicht

0.1 kg
