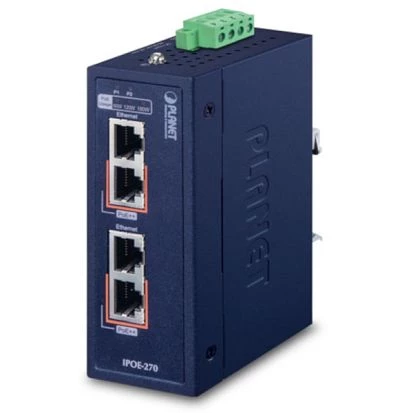

IPOE-270

IPOE-270

ART. NR.:: 57296300

IP30 Industrial 2-Port Multi-gigabit 802.3bt PoE++ Injector (180 Watts budget, PoE Usage LED, 10M/100M/1G/2.5G/5G speed), 48..56V DC-In, -40..+75C Operating Temperature

Preis auf Anfrage

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Power Budget

180 W

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3bz for 5GBaseT and 2.5GBaseT

Stromversorgung

Eingangsspannung DC

48..56 V

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

DIN-Rail mount, Desktop

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

41 mm

Tiefe

70 mm

Höhe

115 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..75 °C

Vibration

IEC60068-2-6

Schock

IEC60068-2-27

Normen und Zertifikate

Zertifizierungen

CE

EMI

FCC Part 15 Subpart B Class A

Sturz

IEC 60068-2-32

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

1 kg

Nettogewicht

0.49 kg
