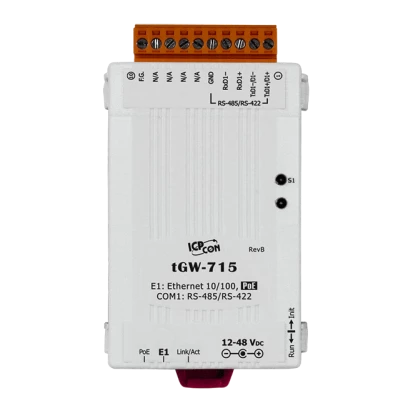

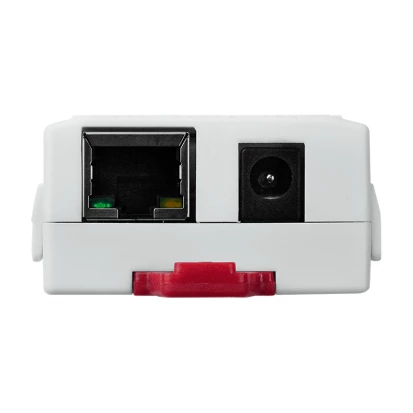

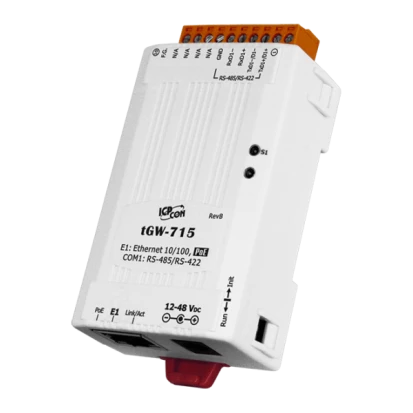

tGW-715

Datasheet_tGW_700__22899083.pdf User_Manual_tGW_700__22899145.pdf Quick_start_tGW_700__36920913.pdf

ART. NR.:: 05733400

Tiny Modbus/TCP to RTU/ASCII gateway with PoE and 1 RS-422/485

Preis auf Anfrage

Ethernet

Ethernet gesamt

10/100 Mbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-422/485

Netzwerk

Industrieprotokolle

Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave

Systemleistung

Eingangsspannung DC

12..48 V

Power over Ethernet (PoE)

IEEE 802.3af, PoE

Betriebsbedingungen

Maximale Betriebstemperatur

-25..75 °C

Aufbau

Gehäuse

Kunststoffgehäuse

Einbaumöglichkeit

DIN-Rail mount

Maße und Gewicht

Breite

52 mm

Tiefe

27 mm

Höhe

95 mm

Schnittstellen

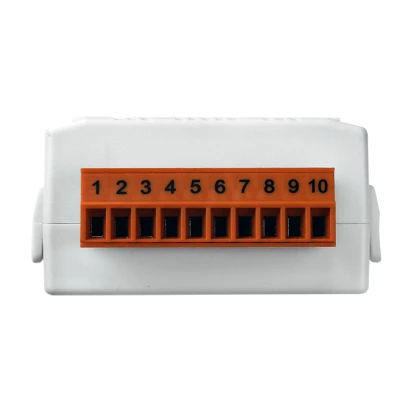

Screw Terminal

Kabel

enthaltene Kabel

кабель питания CA-002 в комплекте

Maße

Bruttogewicht

0.11 kg

Nettogewicht

0.07 kg
