R19L300-MRA1FP

R19L300-MRA1FP

ART. NR.:: 06816100

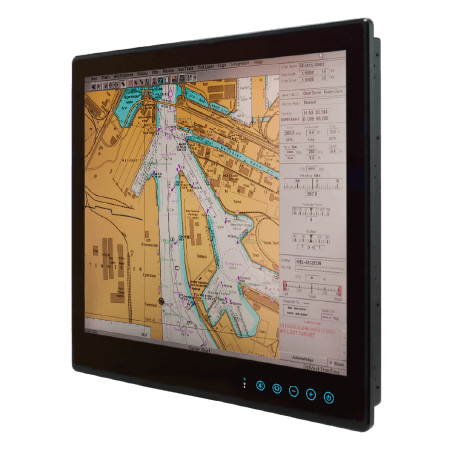

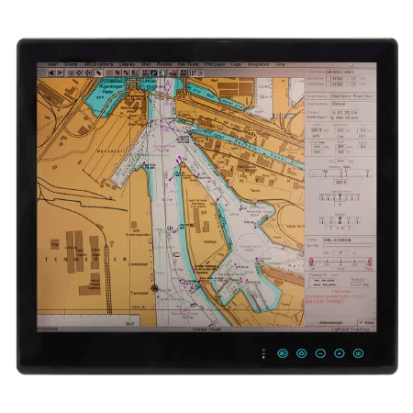

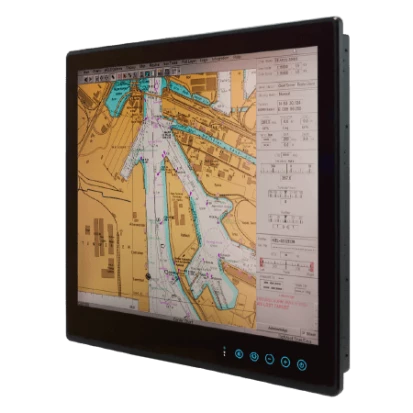

19" Marine ECDIS Display, IEC60945 4th, IACS-E10, DNV-CG-0339, 1280x1024, 400cd/m2, PCAP Touch, HDMI, DVI-D, VGA, 1xUSB for Touch, 1xCOM for Remote, 9-36VDC-in (24V Certified) with Power Adapter, Cable Kit, Color Calibration Optional

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Panel, Wall VESA 100

Schutzlevel Frontseite (Panel)

IP66

Display

Bildschirmtyp

LCD TFT

Diagonale

19 "

Maximale Auflösung

1280x1024 Dots

Helligkeit

400 Cd/m2

Kontrastverhältnis

1000~1

Input Schnittstelle

HDMI, VGA, DVI-D

Touch Screen

Touch Screen Art

kapazitiv

Schnittstelle

USB

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off, Kontrolltasten

Schnittstellen

Schnittstellen

DB9, DVI-D, DB15 VGA, HDMI, 1xUSB, DC input (terminal block)

Stromversorgung

Eingangsspannung DC

9..36 V

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Ausgangsleistung

45 W

Betriebsbedingungen

Maximale Betriebstemperatur

-15..55 °C

Luftfeuchtigkeit

5-95%

Maße und Gewicht

Breite

429 mm

Höhe

382 mm

Tiefe

72.8 mm

Normen und Zertifikate

Zertifizierungen

CE/FCC

Marine Standard

DNV, IACS-E10, IEC 60945 4th

Maße

Bruttogewicht

11.5 kg

Nettogewicht

9.8 kg

Dokumente

R19L300-MRA1FP-Datasheet-2025.pdf

Produktanfrage

ART. NR.:: 06816100

R19L300-MRA1FP

R19L300-MRA1FP

R19L300-MRA1FP
