R17L500-MRM1

R17L500-MRM1

ART. NR.:: 56977100

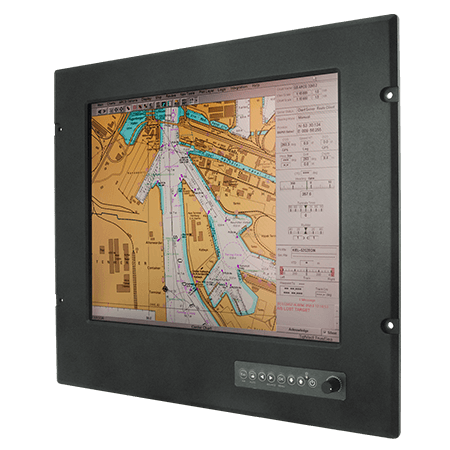

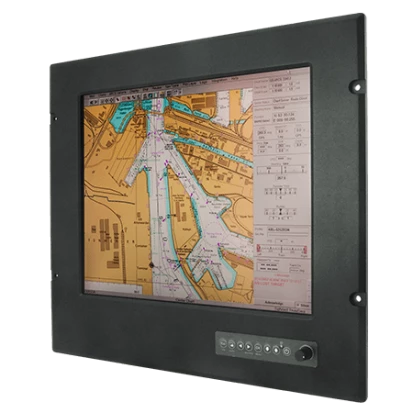

17" Marine Panel Display, IP66 Front, IP54 Rear, 1280x1024, 350cd/m2, Resistive Touch, VGA, DVI-D, S-Video, Composite, 2xCOM, 9-36VDC-in w/ PSU, -15..55C

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Panel, Wall VESA 75

Schutzlevel Frontseite (Panel)

IP66

Material Frontseite (Panel)

Aluminium

Display

Bildschirmtyp

LCD TFT

Diagonale

17 "

Maximale Auflösung

1280x1024 Dots

Seitenverhältnis

4:3

Helligkeit

350 Cd/m2

Kontrastverhältnis

1000~1

Input Schnittstelle

S-Video, VGA, Composite Video, DVI

Touch Screen

Touch Screen Art

resistiv

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off, Tastenfeld

Schnittstellen

Schnittstellen

2xDB9, DVI, DB15 VGA, DC input (terminal block), S-Video, RCA Video

Stromversorgung

Eingangsspannung DC

9..36 V

Stromverbrauch

45 W

Betriebsbedingungen

Maximale Betriebstemperatur

-15..55 °C

Luftfeuchtigkeit

5-95%

Maße und Gewicht

Breite

460 mm

Höhe

410 mm

Tiefe

77.2 mm

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

9.7 kg

Nettogewicht

8.6 kg

Dokumente

R17L500-MRM1-Datasheet.pdf

Produktanfrage

ART. NR.:: 56977100

R17L500-MRM1
