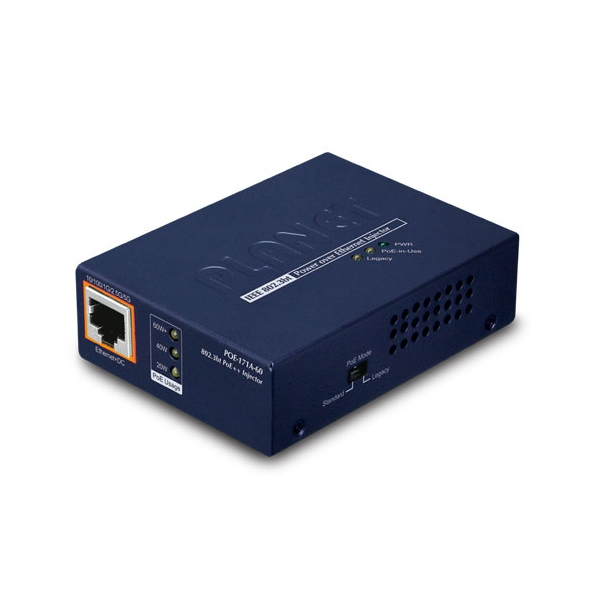

POE-171A-60

POE-171A-60

ART. NR.:: 57523700

Single-Port Multi-Gigabit 802.3bt PoE++ Injector (60 Watts), 52..56V DC, 0..50C Operating Temperature

Preis auf Anfrage

Ethernet

10/100/1000 Mbit/s

1

PoE+ 10/100/1000 Mbit/s

1

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bz for 5GBaseT and 2.5GBaseT

Schnittstellen

Schnittstellen

2xRJ45

Maße und Gewicht

Breite

94 mm

Tiefe

70.3 mm

Höhe

26.2 mm

Normen und Zertifikate

Zertifizierungen

CE, FCC Class B

Maße

Bruttogewicht

0.7 kg

Nettogewicht

0.2 kg
