P21J-M

P21J-M

ONERugged
ART. NR.:: 57811600

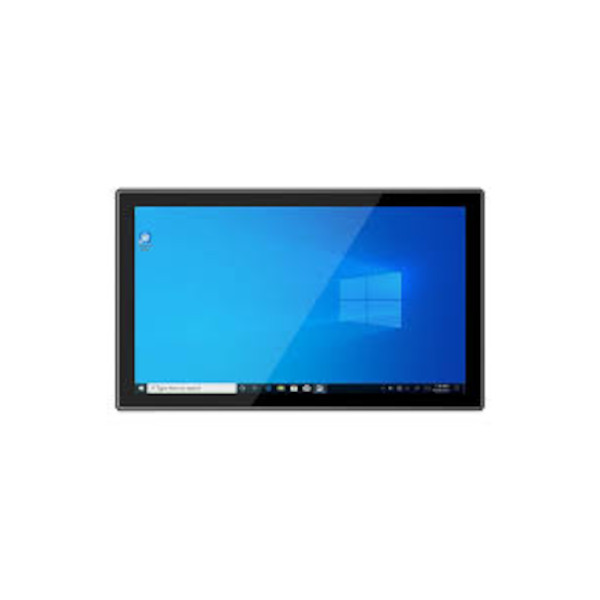

21.5" Fanless Panel PC, IP65 Front, PCAP Touch, 1920x1080, 250 cd/m2, Intel Celeron N5100 CPU, Up to 8GB DDR4 RAM, Up to 128GB M.2 SSD, HDMI, 2xGbE LAN, 2xUSB 3.0, 2xUSB 2.0, 2xRS232, Audio, WiFi/BT5.0, 12VDC-in Power Jack, -20..60C
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Panel, Wall VESA 100, Wall VESA 75
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD IPS
Diagonale
21.5 "
Maximale Auflösung
1920x1080 Dots
Seitenverhältnis
16:9
Helligkeit
250 Cd/m2
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Jasper Lake
Installierter Prozessor
Intel Celeron N5100
Socket
CPU onboard
Maximale CPU-Frequenz
2.8 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR4
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor, Intel UHD Graphics
Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Wi-Fi
WLAN IEEE-Norm
802.11a/b/g/n/ac
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
2
USB gesamt
4
USB 2.0
2
USB v3.x
2
Schnittstelle
M.2
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
M.2
Massenspeicher-Schnittstelle
PCIe x4
Massenspeicher 1. Kapazität
64 GB
Steckplätze
M.2
1
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off
Schnittstellen
Schnittstellen
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line In, Line Out, DC Input
Stromversorgung
Eingangsspannung DC
12..12 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Windows 10, Windows 11
Maße und Gewicht
Breite
537.02 mm
Höhe
324.02 mm
Tiefe
57.6 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..60 °C
Luftfeuchtigkeit
10-90%
Normen und Zertifikate
Zertifizierungen
CE
Maße
Bruttogewicht
5.85 kg
Nettogewicht
5.05 kg

Produktanfrage

ONERugged
ART. NR.:: 57811600
P21J-M
