MS208

MS208

WoMaster
ART. NR.:: 57651400

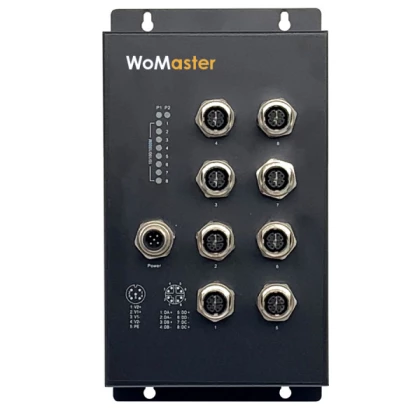

Slim size IP30 M12 Switch for Rolling Stock and Vehicle Applications, 10/100/1000Base-T M12, 24VDC, -40..70 C
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
10/100/1000 Mbit/s
1
Switch Properties
MAC Table Size
4000
Packet Buffer Size
2 kBit
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
110 mm
Tiefe
42 mm
Höhe
202 mm
Maße
Bruttogewicht
1.07 kg
Nettogewicht
0.8 kg
Ethernet
10/100/1000 Mbit/s
1
Switch Properties
MAC Table Size
4000
Packet Buffer Size
2 kBit
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
110 mm
Tiefe
42 mm
Höhe
202 mm
Maße
Bruttogewicht
1.07 kg
Nettogewicht
0.8 kg
Ethernet
10/100/1000 Mbit/s
1
Switch Properties
MAC Table Size
4000
Packet Buffer Size
2 kBit
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
110 mm
Tiefe
42 mm
Höhe
202 mm
Maße
Bruttogewicht
1.07 kg
Nettogewicht
0.8 kg
Ethernet
10/100/1000 Mbit/s
1
Switch Properties
MAC Table Size
4000
Packet Buffer Size
2 kBit
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
110 mm
Tiefe
42 mm
Höhe
202 mm
Maße
Bruttogewicht
1.07 kg
Nettogewicht
0.8 kg

Dokumente
MS208-Datasheet.pdf
Dokumente
MS208-Datasheet.pdf
Dokumente
MS208-Datasheet.pdf
Dokumente
MS208-Datasheet.pdf
