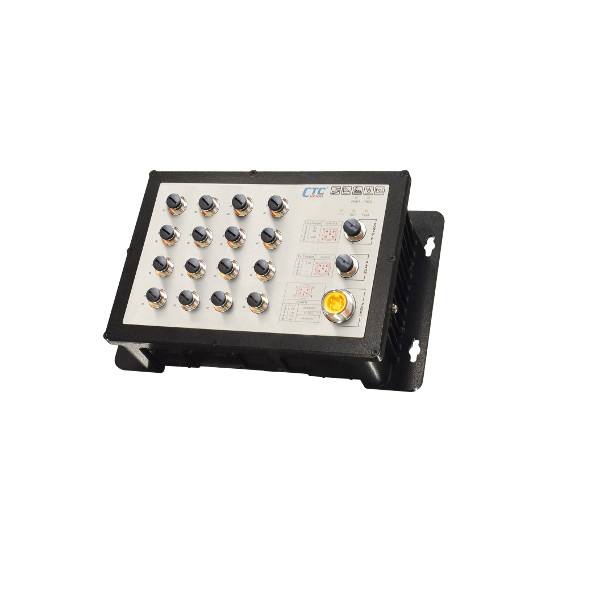

ITP-1204GTM

ITP-1204GTM

CTC Union
ART. NR.:: 56512100
Managed Ethernet Switch with 12x 100 Base-TX and 4x 1000 Base-T M12 Ports, EN50155/EN50121-4/EN60950-1 Certification, 24~110V DC Input Power, -10..+60C Operating Temperature
Preis auf Anfrage
Verfügbar
Verfügbar
Ethernet
Ethernet gesamt
16
10/100 Mbit/s
12
10/100 Mbit/s Schnittstelle
12xM12
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit Ports
2
Switch Properties
Managed
Yes
Netzwerk
Industrieprotokolle
EtherNet/IP
Steuerungsprotokolle
SNMPv1/v2c/v3, HTTP, Syslog, Telnet, DNS, DHCP, RMON, TFTP, IEEE 1588 PTP V2 (software based)
Sicherheitsprotokolle
HTTPS, SSH, SSL, IEEE 802.1X Network Access Control
IEEE Norm
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
Status LEDs / Schalter
Betriebsart
Console Port, Web-interface
Systemleistung
Redundanter Stromeingang
Ja
Eingangsspannung DC
8..60 V
Stromversorgung Reserve-Eingang Spannung DC
8..60 V
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Normen und Zertifikate
Zertifizierungen
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Bahnfahrzeuge
EN 50121-4, EN 50155
Internetsicherheit
UL 60950-1
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 61373
Maße
Bruttogewicht
0.7 kg
Nettogewicht
0.41 kg
