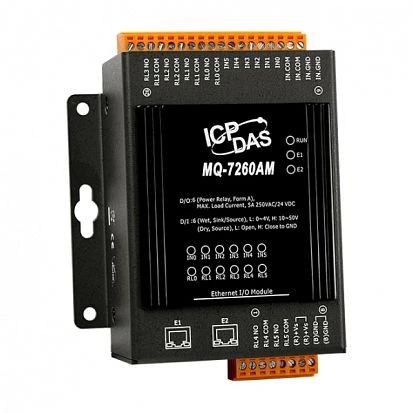

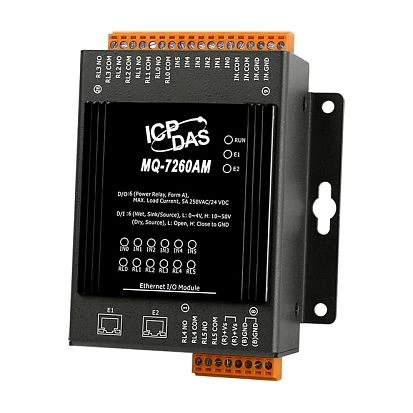

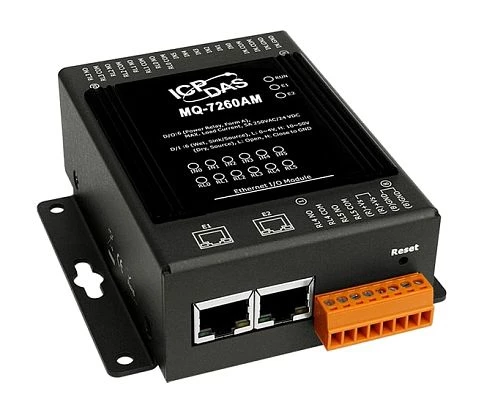

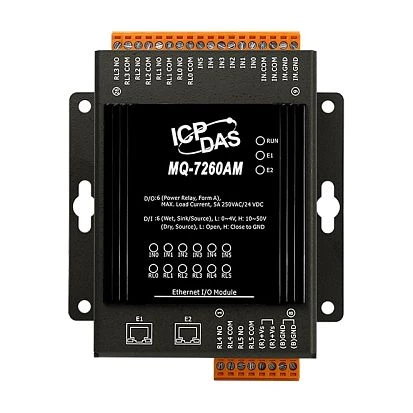

MQ-7260AM

ICP DAS
ART. NR.:: 09447000
MQTT I/O Module with 6-ch Power Relay and 6-ch DI, 2xEthernet, 12-48VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Hardware, Software
Netzwerk
Industrieprotokolle
Modbus TCP server, MQTT client
Digital Eingang
Gesamtanzahl
6
Typ
Dry contact, Wet contact
Pegel der Logik "0"
0~4 V
Pegel der Logik "1"
10~50 V
Sink/Source
Dry Kontakt -Source, Wet Kontakt- Sink/Source
Isolierter Digital-Eingang
2500 V
Digital Ausgang
Gesamtanzahl
6
Typ
Electromagnetic relay
Relais (Form A)
6
Max. Strom für Relaiskontakte
5A@250V AC, 5A@30V DC
Systemleistung
Eingangsspannung DC
12..48 V
Maße und Gewicht
Breite
97 mm
Tiefe
120 mm
Höhe
42 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..75 °C
Normen und Zertifikate
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Maße
Bruttogewicht
0.3 kg
