IS-DG104P-3-PD

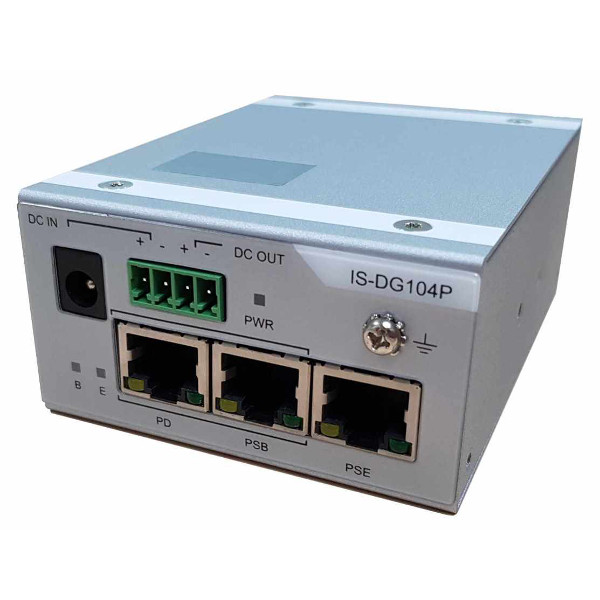

IS-DG104P-3-PD

ISON
ART. NR.:: 56627300
Industrial Power-over-Ethernet Injector, Layer 2, with 1x 1000 PoE PD Port, 1x 1000 PoE PSB Port, 2x 1000 PoE PSE port, 12-58VDC Input Voltage, up to 60W PoE Output,PoE PSE, PoE Splitter, -40..+75C Operating Temperature
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
4
10/100/1000 Mbit/s
4
PoE+ 10/100/1000 Mbit/s
4
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet
Stromversorgung
Eingangsspannung DC
12..58 V
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
0.22 kg
Nettogewicht
0.7 kg
Ethernet
Ethernet gesamt
4
10/100/1000 Mbit/s
4
PoE+ 10/100/1000 Mbit/s
4
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet
Stromversorgung
Eingangsspannung DC
12..58 V
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
0.22 kg
Nettogewicht
0.7 kg
Ethernet
Ethernet gesamt
4
10/100/1000 Mbit/s
4
PoE+ 10/100/1000 Mbit/s
4
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet
Stromversorgung
Eingangsspannung DC
12..58 V
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
0.22 kg
Nettogewicht
0.7 kg
Ethernet
Ethernet gesamt
4
10/100/1000 Mbit/s
4
PoE+ 10/100/1000 Mbit/s
4
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet
Stromversorgung
Eingangsspannung DC
12..58 V
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
0.22 kg
Nettogewicht
0.7 kg

Dokumente
Datasheet_IS_DG104P_3_PD__32975879.pdf
Dokumente
Datasheet_IS_DG104P_3_PD__32975879.pdf
Dokumente
Datasheet_IS_DG104P_3_PD__32975879.pdf
Dokumente
Datasheet_IS_DG104P_3_PD__32975879.pdf
