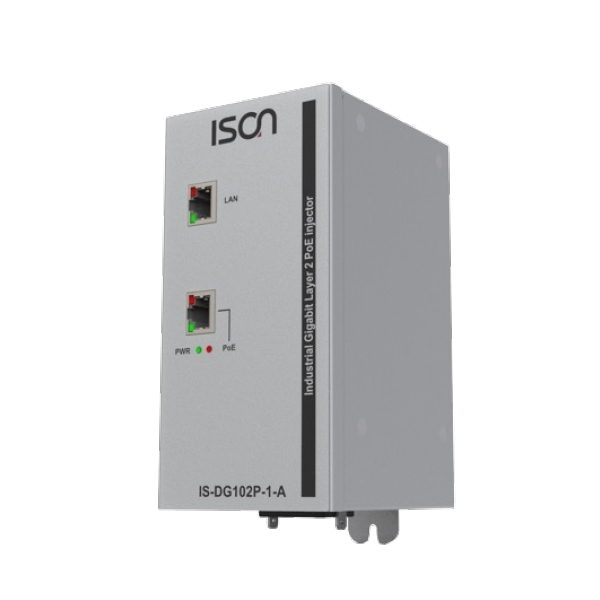

IS-DG102P-1-30-A

IS-DG102P-1-30-A

ART. NR.:: 80296600

Industrial PoE Injector, IP30, 2x10/100/1000Base-TX with PoE+, 100/240 VAC, Operating Temperature -40..75 C

Preis auf Anfrage

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

PoE+ 10/100/1000 Mbit/s

1

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

DIN-Rail mount, Wall

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

80 mm

Tiefe

156 mm

Höhe

96.6 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..75 °C

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A, FCC

EMI

EN 55022 Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-6-2

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

1.3 kg

Nettogewicht

0.8 kg
