IPPC-2140P-C

IPPC-2140P-C

NEXCOM
ART. NR.:: 10141200

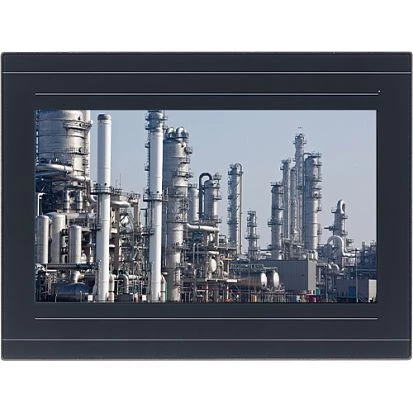

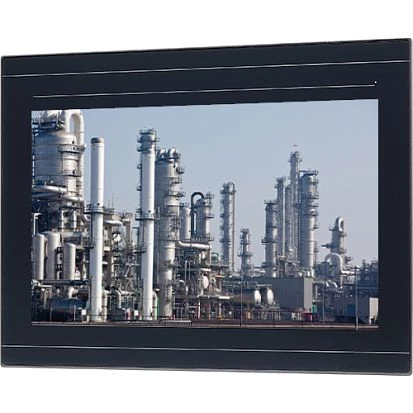

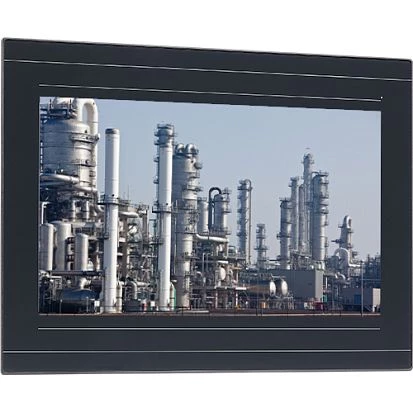

21.5" WXGA LED fanless panel PC with Intel Celeron J1900 2.42GHz CPU, projected capacitive touch screen, 4GB DDR3L, 1x2.5" SATA HDD, CFast, 2xCOM, 3xUSB, 2xRJ-45, 2xMini-PCIe, VGA, power supply 12-30VDC
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall, Desktop, Panel, Wall VESA 100
Schutzlevel Frontseite (Panel)
IP66
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
21.5 "
Maximale Auflösung
1920x1080 Dots
Seitenverhältnis
16:9
Helligkeit
300 Cd/m2
Kontrastverhältnis
5000~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron J1900
Socket
FCBGA1170
Maximale CPU-Frequenz
2.42 GHz
Chipsatz
Chipsatz
Intel Bay Trail-I SoC
Speicher
Formfaktor
DDR3L
Socket Typ
2xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i210-AT
Ethernet gesamt
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
3
USB 2.0
2
USB v3.x
1
Schnittstelle
SATA 3
1
CFast Speicherkarten-Slots
1
Steckplätze
Gesamtanzahl
2
Mini-PCIe/Mini Card
2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off
Schnittstellen
Schnittstellen
2xDB9, DB15 VGA, 2xRJ45 Ethernet, 3xUSB, Line Out, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
12..30 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10
Maße und Gewicht
Breite
562.4 mm
Höhe
382.4 mm
Tiefe
62.85 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..60 °C
Luftfeuchtigkeit
10-90%
Vibration
IEC 68 2-64 (w/ HDD); 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating); 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating); 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
Schock
IEC 68 2-27; HDD: 20G@wall mount, half sine, 11ms
Maße
Bruttogewicht
12 kg
Nettogewicht
9.26 kg

Dokumente
IPPC-2140P-Datasheet.pdf IPPC-1040P-1640P-1840P-2140P-User-Manual-09012023.pdf
