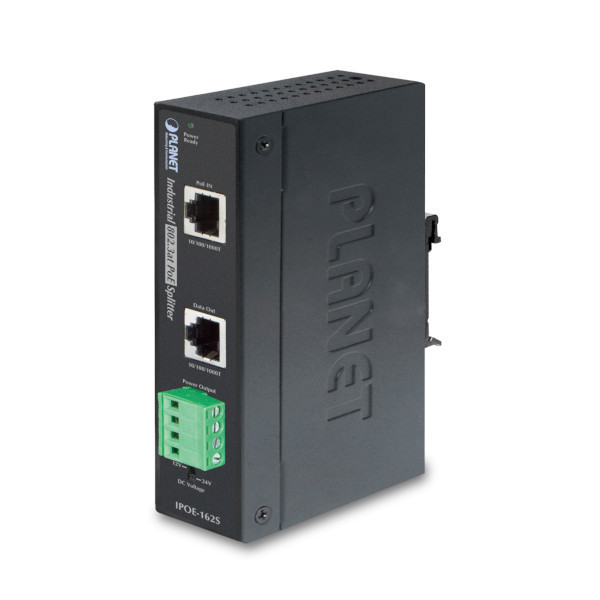

IPOE-162S

Planet
ART. NR.:: 56803600
Industrial Gigabit High Power-over-Ethernet Splitter, 2x1000 RJ45 PoE Port, 12/24V output (2A max), 48~56VDC Input Voltage, up to 30W PoE Output, -40..+75C Operating Temperature
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Stromversorgung
Eingangsspannung DC
48..56 V
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall, Desktop
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
32 mm
Tiefe
87.8 mm
Höhe
135 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Vibration
IEC60068-2-6
Schock
IEC60068-2-27
Normen und Zertifikate
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A
Maße
Bruttogewicht
1 kg
Nettogewicht
0.42 kg
Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Stromversorgung
Eingangsspannung DC
48..56 V
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall, Desktop
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
32 mm
Tiefe
87.8 mm
Höhe
135 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Vibration
IEC60068-2-6
Schock
IEC60068-2-27
Normen und Zertifikate
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A
Maße
Bruttogewicht
1 kg
Nettogewicht
0.42 kg
Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Stromversorgung
Eingangsspannung DC
48..56 V
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall, Desktop
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
32 mm
Tiefe
87.8 mm
Höhe
135 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Vibration
IEC60068-2-6
Schock
IEC60068-2-27
Normen und Zertifikate
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A
Maße
Bruttogewicht
1 kg
Nettogewicht
0.42 kg
Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Stromversorgung
Eingangsspannung DC
48..56 V
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall, Desktop
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
32 mm
Tiefe
87.8 mm
Höhe
135 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Vibration
IEC60068-2-6
Schock
IEC60068-2-27
Normen und Zertifikate
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A
Maße
Bruttogewicht
1 kg
Nettogewicht
0.42 kg

Dokumente
IPOE-162S-Datasheet.pdf
Dokumente
IPOE-162S-Datasheet.pdf
Dokumente
IPOE-162S-Datasheet.pdf
Dokumente
IPOE-162S-Datasheet.pdf
