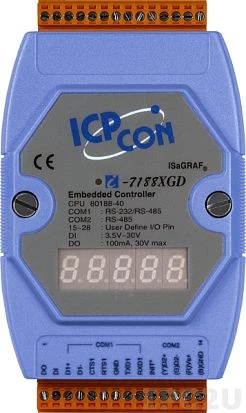

I-7188XGD

PC-compatible 40MHz Industrial Controller, 512kb Flash, 512kb SRAM, I/O Expansion Bus, 2xDI/2xDO, 2xRS232, 1xRS485, 1xRS232/485, 7-Segment Display, ISaGRAF, cable CA-0910x1

Preis auf Anfrage * - Mit der gewählten Konfiguration ()
Stk.
Bestellen
Zu den Favoriten hinzufügen Aus den Favoriten entfernen
Auf die Vergleichs Vergleichen
Hersteller:
ICP DAS
Frequenz:
40 MHz
Standard Onboard Speicher:
512 kB
Flash RAM:
512 kB
COM gesamt:
2
Software installiert:
ISaGRAF 3.5
Temperatur:
-25 ... 75 °C
Spezifikationen
Hersteller
Name:
ICP DAS
Aufbau
Gehäuse:
Kunststoffgehäuse
Einbaumöglichkeit:
DIN-Rail mount
Display
Bildschirmtyp:
LED Character
Anzahl der Zeilen:
1
Zeichen pro Zeile:
5
CPU
Installierter Prozessor:
80188
Frequenz:
40 MHz
Speicher
Speichertyp:
SRAM
Standard Onboard Speicher:
512 kB
Flash Memory (BS)
Flash RAM:
512 kB
EEPROM:
2 kB
NVRAM:
31 Byte
Schnittstellen Seriell / Parallel
COM gesamt:
2
RS-485:
1
RS-232/485:
1
Digital Eingang
Gesamtanzahl:
1
Typ:
Dry contact
digitale "1" Dry Contact:
auf Masse geerdet
digital "0" Dry Contact:
offen
Digital Ausgang
Gesamtanzahl:
1
Typ:
Open-Collector
Ausgangsspannung:
1 ... 30 V
Max. Ausgangsstrom:
100 mA
Erweiterungsmodul
Gesamtanzahl:
1
Unterstützt:
X - board
Software
Software installiert:
ISaGRAF 3.5
Entwicklung Software:
ISaGRAF 3.5 (Mini OS7)
Programmierverfahren:
IEC 61131-3
Watchdog
Hardware:
Yes
Reaktionszeit:
0.8 second
Systemleistung
Eingangsspannung DC:
10 ... 30 V
Energieverbrauch:
3 W
Betriebsbedingungen
Temperatur:
-25 ... 75 °C
Feuchtigkeit:
10 ... 90 % (non-condensing)
Lagerbedingungen
Temperaturbereich:
-30 ... 80 °C
Maße und Gewicht
Breite:
72 mm
Höhe:
33 mm
Tiefe:
123 mm
Optionen

Konfiguration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
Preis auf Anfrage ()
Prototype Karten Einzelpreis Gesamtpreis
nicht installiert
Prototype Board for I-7188XA/XC, 64 x 38 mm
Prototype Board for I-7188XA/XC, 64 x 70 mm
Spannungsversorgung Einzelpreis Gesamtpreis
nicht installiert
Power Adapter 230V DC/24V 100mA DC
Software Einzelpreis Gesamtpreis
nicht installiert
Flash drive (USB key) 512 MB for access and IsaGraf software activation

Größe

Gewicht

Bruttogewicht: 0.35 kg
Nettogewicht: 0.2 kg
