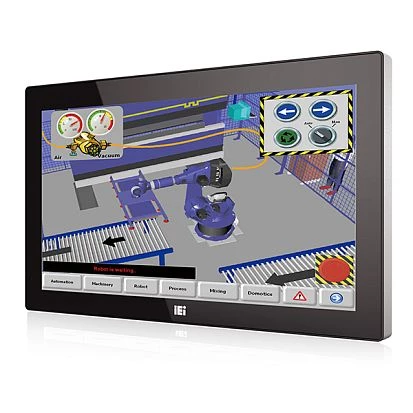

AFL3-W19C-ULT3-i5/PC/4G

AFL3-W19C-ULT3-i5/PC/4G

IEI
ART. NR.:: 07371200
18.5" 250 cd/m2 panel PC with Intel Core i5-6300U 2.40GHz, projected capacitive touch screen, 1x4GB DDR4 RAM, 1x2.5" SATA Drive Bay, M.2, 2xGbit LAN, 2xCOM, 4xUSB 3.0, HDMI, Wi-Fi, Audio, camera 2M, power supply 9-30V DC
Abgekündigt

Aufbau
Gehäuse
ABS-Kunstoffgehäuse
Einbaumöglichkeit
Wall, Desktop, Panel, Wall VESA 100, Arm
Schutzlevel Frontseite (Panel)
IP64
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
18.5 "
Maximale Auflösung
1366x768 Dots
Seitenverhältnis
16:9
Helligkeit
250 Cd/m2
Kontrastverhältnis
1000~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Skylake
Installierter Prozessor
Intel Core i5-6300U
Socket
CPU onboard
Maximale CPU-Frequenz
3 GHz
Chipsatz
Chipsatz
Intel Skylake SoC
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
Standard Onboard Speicher
4 GB
Maximum Speicher
32 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Wi-Fi
WLAN IEEE-Norm
802.11a/b/g/n/ac
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC892
Schnittstelle
M.2
1
mSATA
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Status LEDs / Schalter
Schalter
On/Off, 1xReset, AT/ATX Umschalter

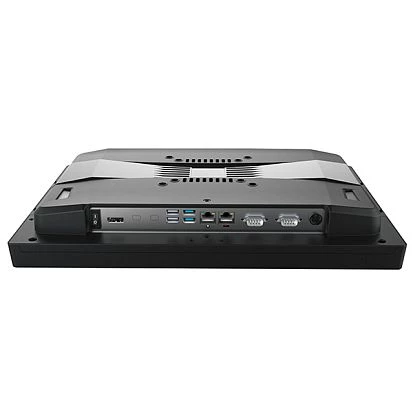

Schnittstellen
Schnittstellen
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out
Stromversorgung
Eingangsspannung DC
9..30 V
Stromverbrauch
85.2 W
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Ausgangsleistung
96 W
Software
Betriebssystemkompatibilität
Windows Embedded Standard 7, Windows Embedded Standard 8
Maße und Gewicht
Breite
472 mm
Höhe
292 mm
Tiefe
68 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..50 °C
Normen und Zertifikate
Zertifizierungen
CE/FCC
Maße
Bruttogewicht
10 kg
Nettogewicht
7 kg

Dokumente
Datasheet_AFL3_W19C_ULT3__31172674.pdf

Antrag auf Ersetzung
