AFL3-W19A-AL-J2/PC/4G

AFL3-W19A-AL-J2/PC/4G

IEI
ART. NR.:: 08268900

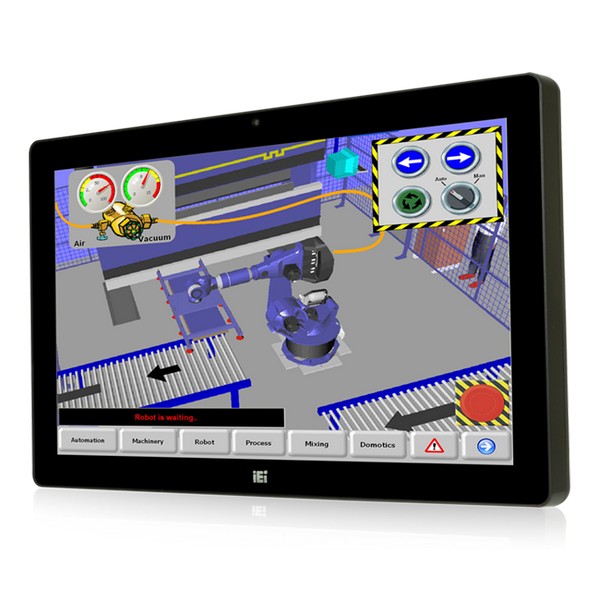

18.5" Panel PC with Intel Celeron-J3455 1.5GHz,250 cd/m2, 1366x768, PCAP touch screen, 4GB DDR4 RAM, 1x2.5" SATA Drive Bay, M.2, 2xGbit LAN, 2xCOM, 4xUSB, HDMI, Wi-Fi, camera 2M, 9-30V DC-in
Abgekündigt

Aufbau
Gehäuse
Kunststoffgehäuse mit Aluminium-Kühlkörper
Einbaumöglichkeit
Wall, Desktop, Panel, Wall VESA 100, Arm
Schutzlevel Frontseite (Panel)
IP64
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
18.5 "
Maximale Auflösung
1366x768 Dots
Helligkeit
250 Cd/m2
Kontrastverhältnis
1000~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
Installierter Prozessor
Intel Celeron J3455
Socket
CPU onboard
Maximale CPU-Frequenz
2.3 GHz
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
Standard Onboard Speicher
4 GB
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i211
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Wi-Fi
WLAN IEEE-Norm
802.11a/b/g/n/ac
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC262
Schnittstelle
mSATA
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Gesamtanzahl
1
Mini-PCIe/Mini Card
1
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off, 1xReset, AT/ATX Umschalter
Schnittstellen
Schnittstellen
HDMI, 2xRJ45, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
Stromversorgung
Eingangsspannung DC
12..34 V
Stromverbrauch
24 W
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Ausgangsleistung
60 W
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise
Maße und Gewicht
Breite
470 mm
Höhe
280 mm
Tiefe
60 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-15..50 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
9 kg
Nettogewicht
6.3 kg

Dokumente
Datasheet_AFL3_W19A_AL__33620529.pdf
