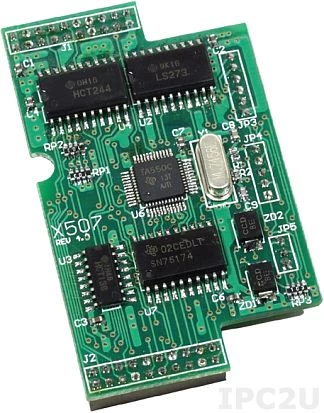

X507

X507

ART. NR.:: 01556600

1xRS-422/485, 4 DI (0V...1V/3.5V...30V) & 4 DO (100mA / 30V max) Board, for I-7188XB/EX

Preis auf Anfrage

Aufbau

Gehäuse

Open-Frame

Einbaumöglichkeit

Einbau

Schnittstellen Seriell / Parallel

RS-422/485

1

Digital Eingang

Gesamtanzahl

4

Typ

Wet contact

Pegel der Logik "0"

0~1 V

Pegel der Logik "1"

3.5~30 V

Digital Ausgang

Gesamtanzahl

4

Typ

Open-Collector

Ausgangsspannung

0~30 V

Max. Ausgangsstrom

100 mA

Maße

Bruttogewicht

0.05 kg
