WAFER-BT-N29301

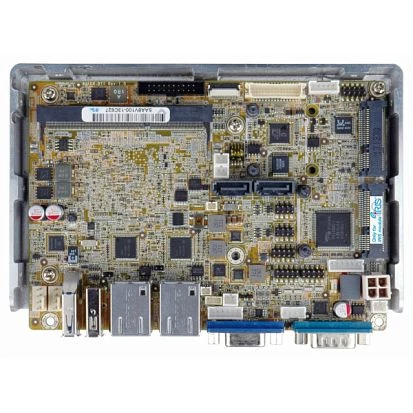

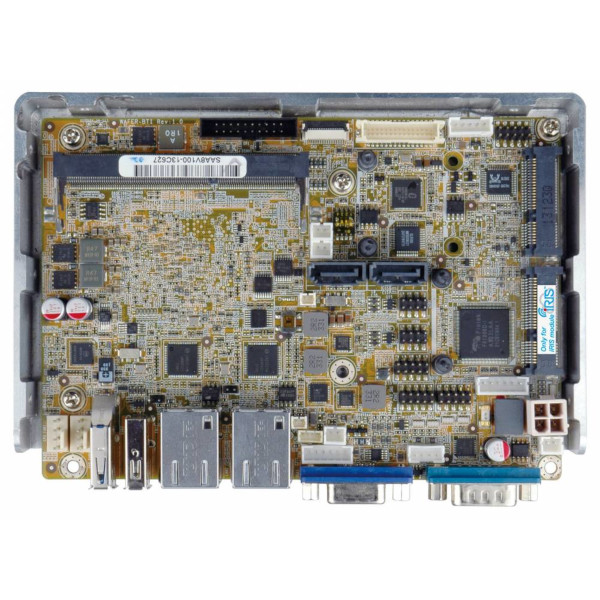

WAFER-BT-N29301

IEI
ART. NR.:: 08404400
3.5" SBC with Intel Celeron N2930 1.86GHz on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, 6xCOM, 5xUSB 2.0, 1xUSB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, Audio and RoHS
Preis auf Anfrage
Verfügbar
Verfügbar

Systemarchitektur
Formfaktor
3.5"
Aufbau
Typ
Lüfterlos
CPU
Installierter Prozessor
Intel Celeron J1900, Intel Celeron N2930
Socket
CPU onboard
Maximale CPU-Frequenz
1.86 GHz
Chipsatz
Chipsatz
AMD G-series + A55E
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
ECC
No
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Schnitstellen
DisplayPort, LVDS, VGA
Ethernet
Controller Typ
Intel i210-AT, Intel i211-AT 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-422/485
1
USB gesamt
6
USB 2.0
5
USB v3.x
1
Digital Eingang / Ausgang
Gesamtanzahl
8
Audio
Audio Controller
Realtek ALC892
Schnittstelle
mSATA
1
Steckplätze
Gesamtanzahl
1
Mini-PCIe/Mini Card
1
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Schnittstellen
DB9, DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Maße und Gewicht
Breite
146 mm
Länge
102 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..60 °C
Normen und Zertifikate
Zertifizierungen
CE
Maße
Bruttogewicht
0.5 kg
Nettogewicht
0.5 kg

Produktanfrage

IEI
ART. NR.:: 08404400
WAFER-BT-N29301
