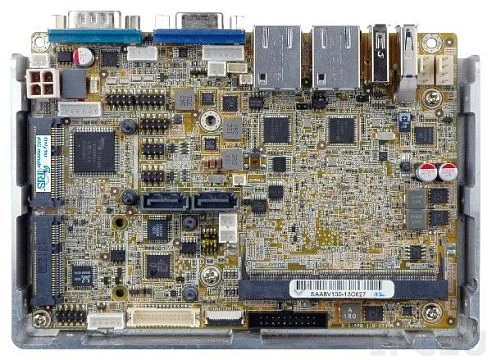

WAFER-BT-J19001

WAFER-BT-J19001

IEI
ART. NR.:: 56782600
3.5" Embedded SBC, Intel Celeron J1900 2.0GHz SoC, Up to 8GB DDR3L RAM, VGA/LVDS/iDP, 2xGbE LAN, 1xUSB 3.1, 1xUSB 2.0 (4xInternal), 1xCOM (3xInternal), 2xMiniPCIe, 2xSATA2, mSATA, 12VDC-In
Preis auf Anfrage
Verfügbar
Verfügbar

Systemarchitektur
Formfaktor
3.5"
Aufbau
Typ
Lüfterlos
CPU
Installierter Prozessor
Intel Celeron J1900
Socket
CPU onboard
Maximale CPU-Frequenz
2.42 GHz
Speicher
Formfaktor
DDR3L
Socket Typ
Verlötet
Standard Onboard Speicher
4 GB
Maximum Speicher
8 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor, Intel Gen7 graphic engine
Schnitstellen
LVDS, VGA, iDP
Ethernet
Controller Typ
Intel i210-IT, Intel i211-AT 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
3
RS-232
3
RS-422/485
1
USB gesamt
6
USB 2.0
5
USB v3.x
1
Digital Eingang / Ausgang
Gesamtanzahl
8
Audio
Audio Controller
Realtek ALC662 HD
Steckplätze
Gesamtanzahl
2
Mini-PCIe/Mini Card
2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Intern
1x4-pin RS-422/485, 2x10-pin RS-232, 2x4-pin USB 2.0
Schnittstellen
DB9, DB15 VGA, LVDS, 2xRJ45 Ethernet, 2xUSB, Display port
Maße und Gewicht
Breite
146 mm
Länge
102 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..85 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
0.45 kg
Nettogewicht
0.25 kg
