W27IE3S-PPA1

W27IE3S-PPA1

Winmate
ART. NR.:: 10759600

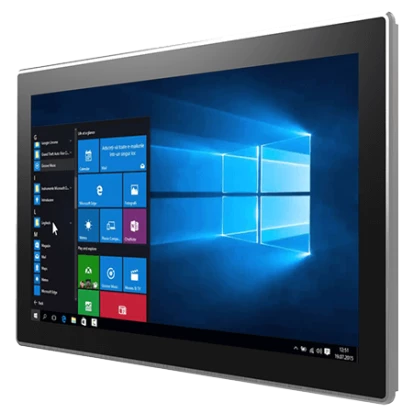

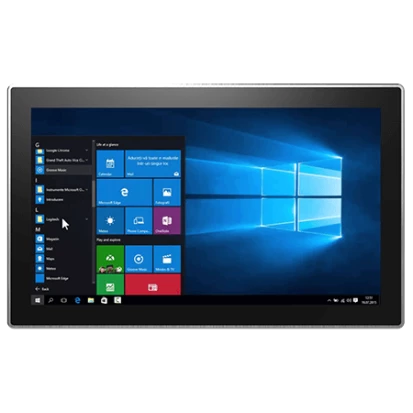

27" Fanless Panel PC, PP Series, IP65 Front, 1920x1080, 300cd/m2, Intel Celeron N6211 1.2GHz CPU, Up to 16GB DDR4 RAM, Up to 512GB SATA SSD, HDMI Opt., 2x2.5GbE LAN, 2xUSB 3.2, 2xCOM, 1xSATA, 1xM.2 2242 Key-B, 12VDC-in w/ PSU
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Panel, Wall VESA 100, Wall VESA 75
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
27 "
Maximale Auflösung
1920x1080 Dots
Seitenverhältnis
16:9
Helligkeit
300 Cd/m2
Kontrastverhältnis
3000~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Elkhart Lake
Installierter Prozessor
Celeron N6211
Socket
FCBGA1493
Maximale CPU-Frequenz
3 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR4
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
16 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor, Intel UHD Graphics
Ethernet
Ethernet gesamt
2
2,5 Gbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
2
USB v3.x
2
Schnittstelle
SATA 3
1
M.2
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
M.2
Massenspeicher-Schnittstelle
SATA
Massenspeicher 1. Kapazität
128 GB
Steckplätze
Gesamtanzahl
2
M.2
2
M.2 Formfaktor
2242 M, 2230 E
Status LEDs / Schalter
LED
1xHDD LED, Power LED
Schalter
On/Off, 1xReset, Kontrolltasten
Schnittstellen
Schnittstellen
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC Input
Stromversorgung
Eingangsspannung DC
12..12 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Ausgangsleistung
80 W
Software
Betriebssystemkompatibilität
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Maße und Gewicht
Breite
683 mm
Höhe
421 mm
Tiefe
76.2 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Luftfeuchtigkeit
10-90%
Normen und Zertifikate
Zertifizierungen
CE/FCC
Maße
Bruttogewicht
13 kg
Nettogewicht
11.6 kg

Dokumente
W27IE3S-PPA1.pdf
