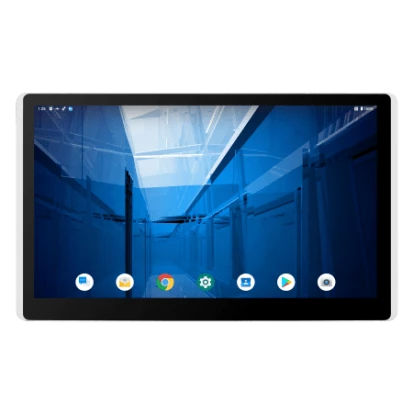

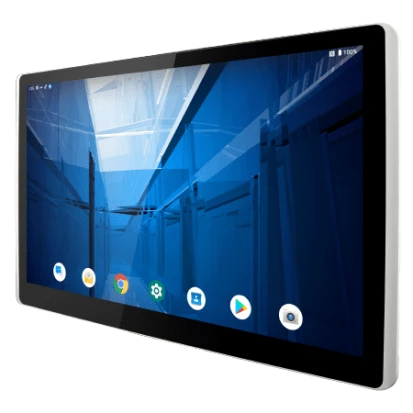

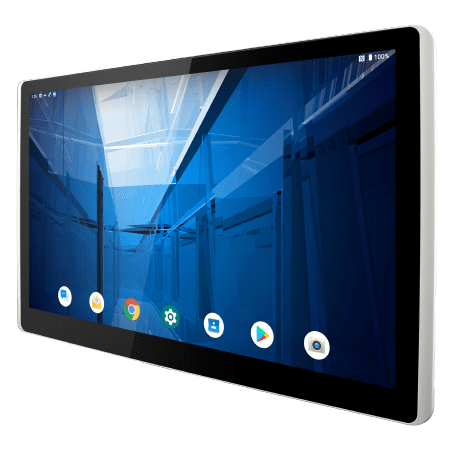

W15IM3S-PTA3

W15IM3S-PTA3

Winmate
ART. NR.:: 57936600
15.6" Fanless Panel PC, PT Series, IP65 Front, 1920x1080, 400 cd/m2, PCAP Touch, ARM Cortex-A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xCOM, 2xUSB 2.0, 1xMicro-USB OTG, 1xGbE LAN (PoE Opt.), 1xMicroSD, Audio, 12VDC-in w/ PSU
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Kunststoffgehäuse
Einbaumöglichkeit
Wall VESA 100, Wall VESA 75, VESA 200x100
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
15.6 "
Maximale Auflösung
1920x1080 Dots
Helligkeit
400 Cd/m2
Kontrastverhältnis
800~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
Installierter Prozessor
ARM Cortex-A53
Socket
CPU onboard
Maximale CPU-Frequenz
2 GHz
Chipsatz
Chipsatz
SoC
Speicher
Formfaktor
DDR4
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
4 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Ethernet gesamt
1
10/100/1000 Mbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232/422/485
1
USB gesamt
3
USB 2.0
3
Schnittstelle
MicroSD Speicherkarten-Slots
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
eMMC
Massenspeicher 1. Kapazität
32 GB
Schnittstellen
Schnittstellen
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB, MicroSD card slot
Stromversorgung
Eingangsspannung DC
12..12 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Ausgangsleistung
50 W
Software
Betriebssystemkompatibilität
Ubuntu
Betriebssystem installiert
Android
Maße und Gewicht
Breite
387.8 mm
Höhe
232.9 mm
Tiefe
40 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Luftfeuchtigkeit
10-90%
Normen und Zertifikate
Zertifizierungen
CE/FCC
Maße
Bruttogewicht
6.1 kg
Nettogewicht
5.4 kg

Dokumente
W15IM3S-PTA3-Datasheet.pdf
