W12IE3S-GSB1

W12IE3S-GSB1

Winmate
ART. NR.:: 10759300

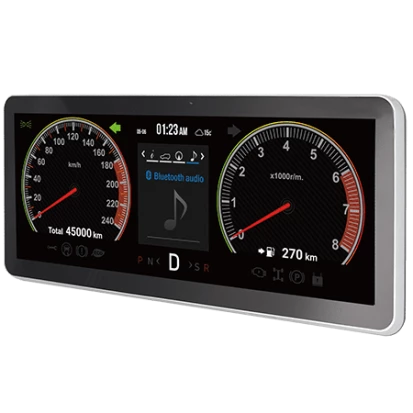

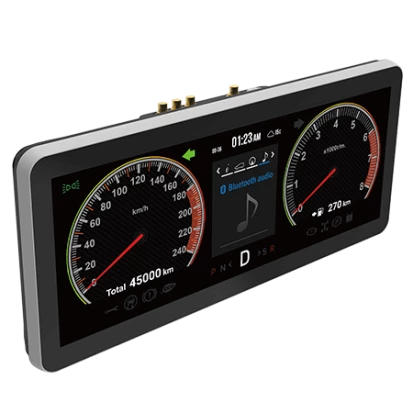

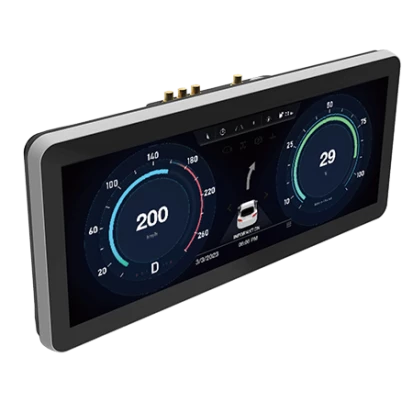

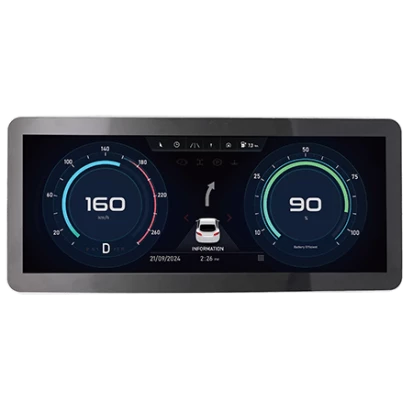

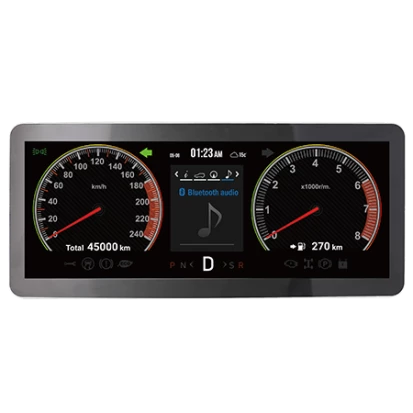

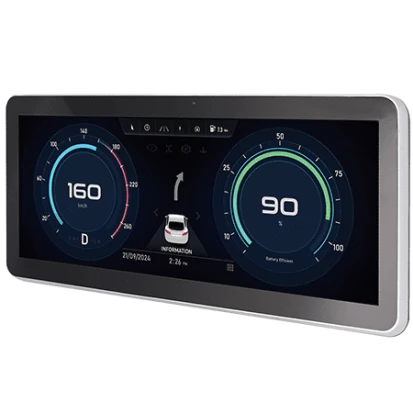

12.3" Fanless Panel PC, G-WIN GC Series, IP65, 1920x720, 1000 cd/m2, PCAP Touch, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB SATA SSD, 1xCOM Opt., 1xUSB 2.0 M12, 1xMicro-USB, 1xGbE M12 LAN, 2xCAN M12 Opt., 1xMicroSD, 10-60VDC-in w/ PSU
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall VESA 75
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
12.3 "
Maximale Auflösung
1920x720 Dots
Helligkeit
1000 Cd/m2
Kontrastverhältnis
1000~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Elkhart Lake
Installierter Prozessor
Celeron N6211
Socket
FCBGA1493
Maximale CPU-Frequenz
3 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR4
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
16 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Ethernet gesamt
1
10/100/1000 Mbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232/422/485
1
USB gesamt
2
USB 2.0
2
Digital Eingang / Ausgang
Gesamtanzahl
6
Industrie Protokolle
CAN Port
2
Schnittstelle
M.2
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
M.2
Massenspeicher-Schnittstelle
SATA
Massenspeicher 1. Kapazität
128 GB
Steckplätze
Gesamtanzahl
1
M.2
1
M.2 Formfaktor
2242 M
Antennen Eigenschaften
Mobilfunk
4G (Optional)
Zusätzliche Funktionen
GPS
Optional
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off, 1xReset
Schnittstellen
Schnittstellen
SIM Card Slot, 3xM12, 1xMicro USB, M16 (DC)
Stromversorgung
Eingangsspannung DC
10..60 V
Software
Betriebssystemkompatibilität
Windows 10, Ubuntu 20.04
Maße und Gewicht
Breite
325.02 mm
Höhe
146.5 mm
Tiefe
45 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..60 °C
Luftfeuchtigkeit
5-95%
Vibration
MIL­-STD­-810H Method 514.8 Procedure I
Schock
MIL­-STD­-810H Method 516.8 Procedure I
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
5.1 kg
Nettogewicht
4.4 kg

Dokumente
W12IE3S-GSB1-Datasheet.pdf
