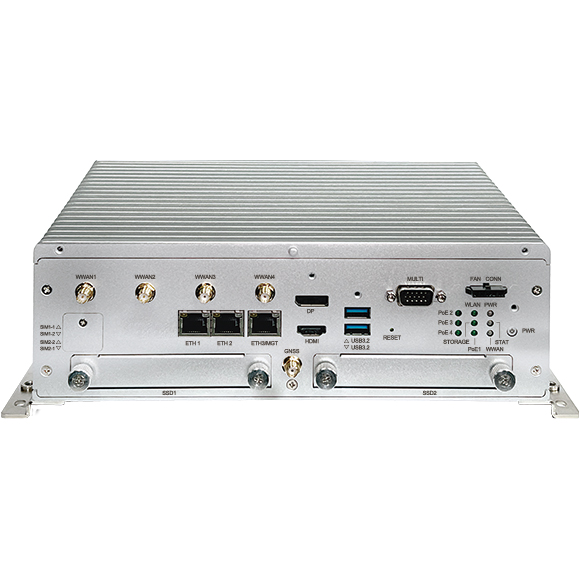

VTC-7270

VTC-7270

NEXCOM
ART. NR.:: 57611800
Vehicle Telematics Computer, Intel 12/13th Gen Core i3/i5/i7/i9 CPU, Up to 64GB DDR5 RAM, VGA/HDMI/DP, 2x2.5 Gbit LAN, 1xGbit LAN, 4xCOM, 6xUSB, Audio, TPM 2.0, 2x2.5" Drive Bay, 2xMini-PCIe, 3xM.2, 1x8-bit DIO, 2xCANBus, 9-36VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Einbau
Typ
Lüfterlos
CPU
CPU Generation/Familie
Alder Lake, Raptor Lake
Socket
LGA1700
Chipsatz
Chipsatz
Intel R680E
Speicher
Socket Typ
2xSODIMM
ECC
Yes
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i226-LM
Ethernet gesamt
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
2
RS-232/422/485
2
USB gesamt
6
Digital Eingang / Ausgang
Gesamtanzahl
8
Industrie Protokolle
CAN Port
2
Laufwerksschächte
Gesamtanzahl
2
2.5" extern
2
Steckplätze
Gesamtanzahl
5
M.2
3
Mini-PCIe/Mini Card
2
Schnittstellen
Schnittstellen
4xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, Display port, SIM Card Slot, DC input (terminal block), 12V DC Output
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Windows 10, Ubuntu 18.04 LTS, Windows 11
Maße und Gewicht
Breite
260 mm
Höhe
81 mm
Tiefe
210 mm
Betriebsbedingungen
Vibration
Vibration in operating: MIL-STD-810H, 514.8C Procedure 6, Category 4, IEC 60068-2-64: 2.0g@5~500 Hz; Vibration in storage: MIL-STD-810H, 514.8E Procedure 1, Category 24, 7.7g
Schock
MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g; Crash hazard: Procedure V, ground equipment=75g
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Automotive
E-Mark
Vibration und Schock
IEC 60068-2-64
Maße
Bruttogewicht
6.8 kg
Nettogewicht
5.7 kg

Dokumente
VTC-7270-Datasheet-05222025.pdf

Produktanfrage

NEXCOM
ART. NR.:: 57611800
VTC-7270
