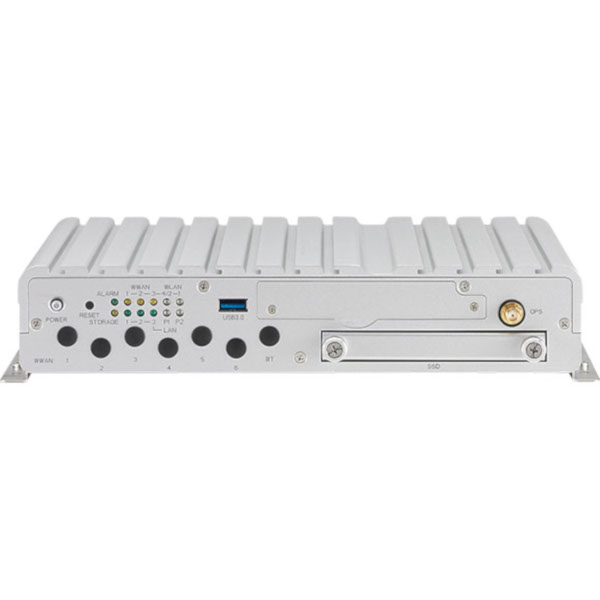

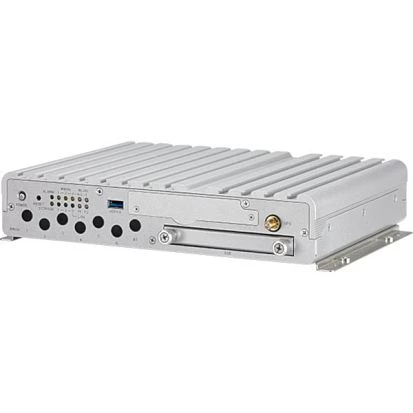

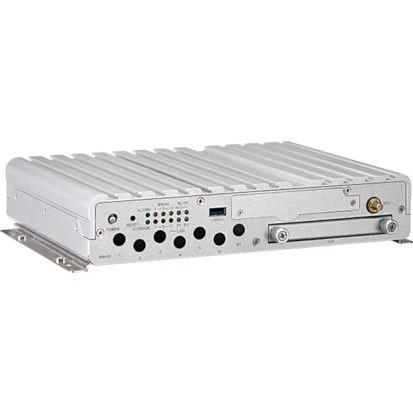

VTC-6221

VTC-6221

ART. NR.:: 56982100

Embedded Server Intel Atom E3950 up to 2.0GHz, 1x4 GB DDR3L SO-DIMM RAM, HDMI, 2xVGA, 8-bit DIO, 2xGb LAN, 2xCOM, 3xUSB, Audio, 2.5" Drive Bay, CFast, 3xMini-PCIe, M.2 (USB 3.0+USB 2.0), 9...48V DC input

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Typ

Lüfterlos

CPU

Installierter Prozessor

Intel Atom E3950

Maximale CPU-Frequenz

2 GHz

Speicher

Formfaktor

DDR3L

Standard Onboard Speicher

4 GB

Maximum Speicher

8 GB

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232

1

RS-232/485

1

USB gesamt

3

Digital Eingang / Ausgang

GPIO

4xDigital In / 4xDigital Out

Industrie Protokolle

CAN Port

1

Schnittstelle

CFast Speicherkarten-Slots

1

Steckplätze

Gesamtanzahl

4

M.2

2

Mini-PCIe/Mini Card

2

SIM-Karten Steckplätze

6

Zusätzliche Funktionen

GPS

GPS

Schnittstellen

Schnittstellen

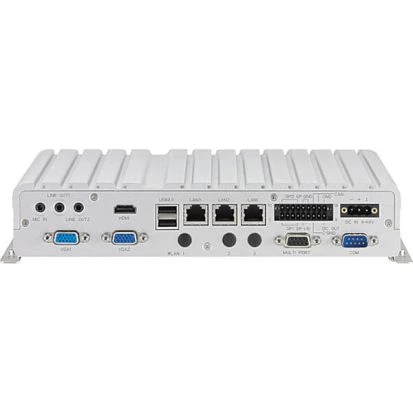

DB15 VGA, HDMI, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block)

Stromversorgung

Eingangsspannung DC

9..48 V

Software

Betriebssystemkompatibilität

Linux OS, Windows 10

Maße und Gewicht

Breite

260 mm

Höhe

50 mm

Tiefe

196 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..70 °C

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

MIL-STD-810

MIL-STD-810G Test Method 516.6 Shock

Automotive

E-Mark

Maße

Bruttogewicht

3 kg

Nettogewicht

2.1 kg

Dokumente

VTC-6221-Datasheet-2020.pdf
