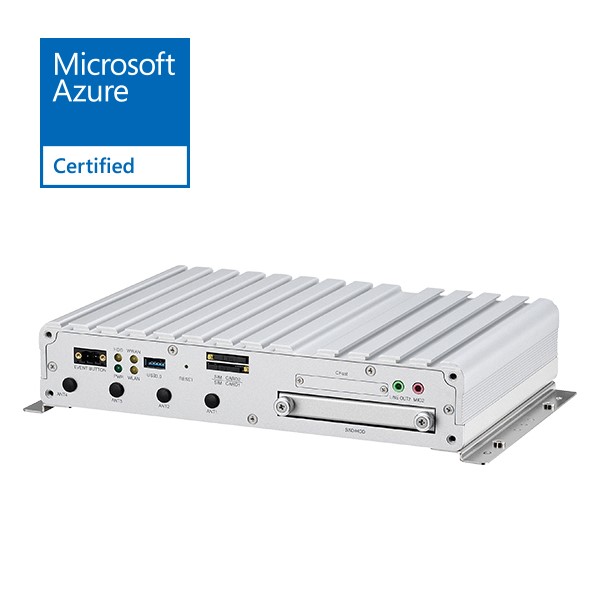

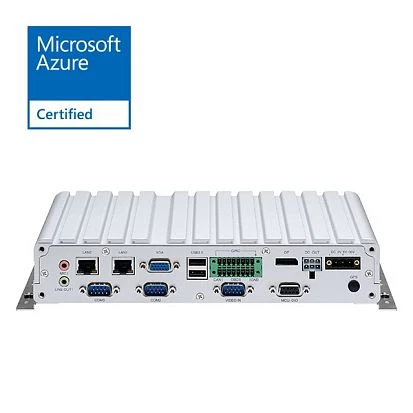

VTC-6210-VR4

VTC-6210-VR4

ART. NR.:: 08728400

Embedded Server Intel Atom E3845 1.91GHz, 2GB DDR3L 1600 SO-DIMM RAM, w/VGA/DP, 2xGb LAN, 3xCOM, 1xUSB 3.0, 2xUSB 2.0, GPIO, Audio, GPS, 4x analog Video-In, 1x2.5" Drive Bay, CFast, 4xMini-PCIe, 9...36V DC input

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Einbau

Schutzlevel Gehäuse

IP65

Typ

Lüfterlos

CPU

Installierter Prozessor

Intel Atom E3845

Maximale CPU-Frequenz

1.91 GHz

Speicher

Formfaktor

DDR3L

Standard Onboard Speicher

2 GB

Maximum Speicher

8 GB

Bauweise

herausnehmbar

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

3

RS-232

2

RS-422/485

1

USB gesamt

3

USB 2.0

2

USB v3.x

1

Digital Eingang / Ausgang

Gesamtanzahl

8

GPIO

Yes

Schnittstelle

CFast Speicherkarten-Slots

1

Laufwerksschächte

Gesamtanzahl

1

2.5" extern

1

Steckplätze

Gesamtanzahl

4

Mini-PCIe/Mini Card

4

SIM-Karten Steckplätze

2

Antennen Eigenschaften

Mobilfunk

3G (Optional)

Zusätzliche Funktionen

GPS

GPS

Schnittstellen

Schnittstellen

3xDB9, DB15 VGA, 2xRJ45 Ethernet, 3xUSB, Display port, DC input (terminal block), 12V DC Output, GPIO (terminal block), DB9 Female, 2xLine Out, 2xMic In

Stromversorgung

Eingangsspannung DC

9..36 V

Stromverbrauch

19 W

Software

Betriebssystemkompatibilität

Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Fedora

Maße und Gewicht

Breite

260 mm

Höhe

50 mm

Tiefe

176 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-30..70 °C

Vibration

SSD: 2G @ 5...500 Hz; HDD: 1G @ 5...500 Hz

Schock

20G

Normen und Zertifikate

Zertifizierungen

CE, FCC Class B

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Automotive

e13 Mark

Maße

Bruttogewicht

3 kg

Nettogewicht

2.1 kg

Dokumente

VTC-6210-VR4-Datasheet-05042023.pdf
