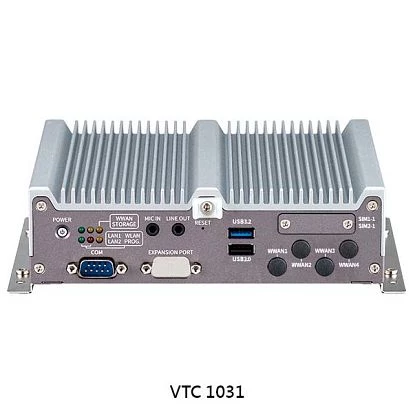

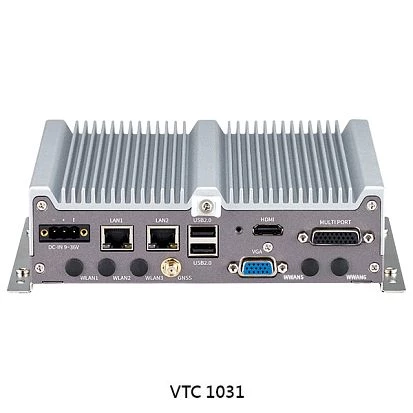

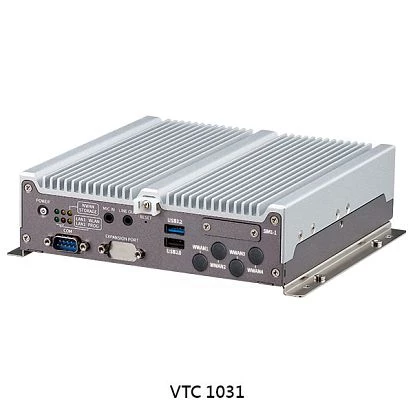

VTC-1031

VTC-1031

NEXCOM
ART. NR.:: 57540900
Mobile Embedded PC, Intel Atom x6413E 1.5GHz CPU, 4GB DDR4 RAM, 1xVGA, 1xHDMI, 1x2.5GbE LAN, 1xGbE LAN, 1xRS232/422/485, 1xMultiport (CAN/DIO/COM), 4xUSB, 1x2.5" Drive Bay, 1xMini-PCIe, 3xM.2, Audio, 9..36VDC-in Terminal Block, -40..70C Wide temp.
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Typ
Lüfterlos
CPU
CPU Generation/Familie
Elkhart Lake
Installierter Prozessor
Atom x6413E
Socket
FCBGA1493
Chipsatz
Chipsatz
Intel Atom SoC
Speicher
Socket Typ
1xSODIMM
ECC
Yes
Standard Onboard Speicher
4 GB
Maximum Speicher
32 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor, Intel UHD Graphics
Ethernet
Controller Typ
Marvell 88E1512 10/100/1000 Mbps, Intel i225IT
Ethernet gesamt
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
WLAN IEEE-Norm
Yes
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
1
RS-485
2
RS-232/422/485
1
USB gesamt
4
USB 2.0
3
Digital Eingang / Ausgang
Gesamtanzahl
9
Industrie Protokolle
CAN Port
1
Laufwerksschächte
2.5" intern
1
Steckplätze
Gesamtanzahl
2
M.2
2
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB26 Multi-I/O Connector, 2xSIM Card Slot
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Linux OS, Windows 10, Windows 11
Maße und Gewicht
Breite
180 mm
Höhe
50 mm
Tiefe
180 mm
Betriebsbedingungen
Vibration
Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure. Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
Schock
Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g. Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Automotive
E-Mark
Maße
Bruttogewicht
2.8 kg
Nettogewicht
1.91 kg
