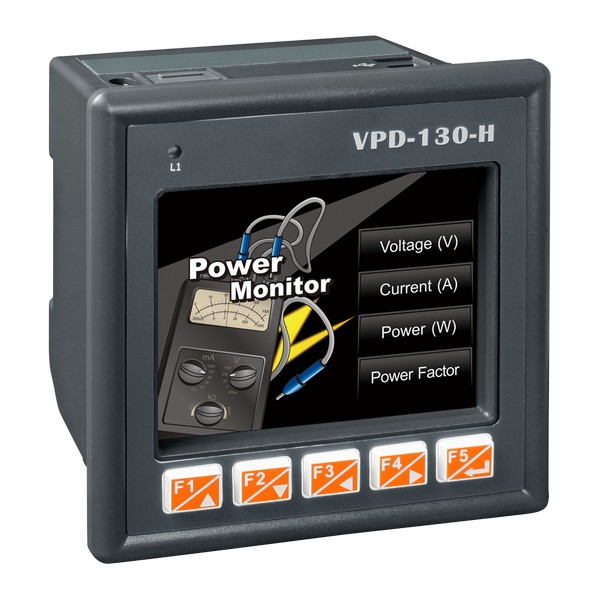

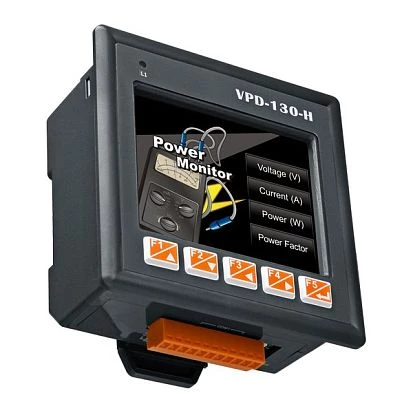

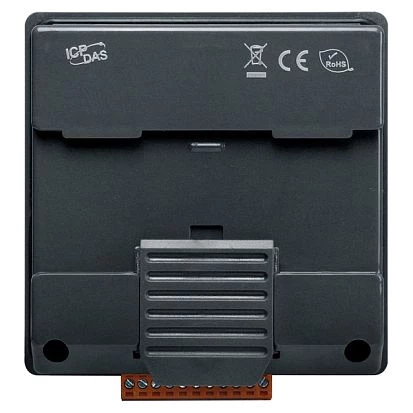

VPD-130

VPD-130

ICP DAS
ART. NR.:: 05826600
3.5" touch HMI device with RS-232/RS-485, USB, RTC, Rubber Keypad
Abgekündigt

Aufbau
Gehäuse
Kunststoffgehäuse
Einbaumöglichkeit
Wall, Panel
Schutzlevel Gehäuse
IP65
Display
Bildschirmtyp
LCD TFT
Diagonale
3.5 "
Helligkeit
270 Cd/m2
Touch Screen
Touch Screen Art
resistiv
Schnittstellen Seriell / Parallel
RS-232/485
1
Software
Entwicklung Software
HMIWorks
Programmierverfahren
C/C++, Leiter-Diagramm
Maße und Gewicht
Breite
103 mm
Tiefe
53 mm
Höhe
103 mm
Maße
Bruttogewicht
0.35 kg
Nettogewicht
0.2 kg
