VMS-APL-Series

VMS-APL-Series

Avalue

ART. NR.:: 57449900

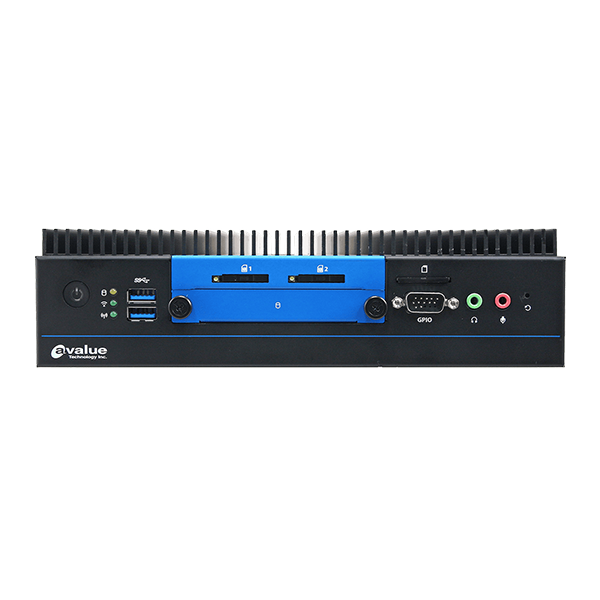

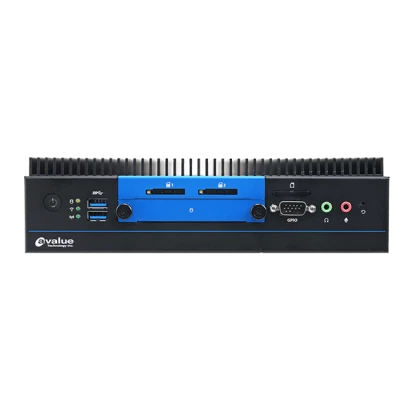

Fanless Vehicle Telematics System, Intel Pentium/Celeron/Atom SoC, Up to 8GB DDR3L RAM, DP, LVDS, 2xGbE LAN, 4xUSB 3.0, 2xCOM, 8bit GPIO, CANBus, SD, NEO-M8N GPS, 1x2.5" Bay, 1xM.2 Key-B, 2xMiniPCIe, 80-pin IET, Audio, 9-36VDC-in

Abgekündigt

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Wall, Desktop

Schutzlevel Gehäuse

IP50

Typ

Lüfterlos

CPU

CPU Generation/Familie

Apollo Lake

Socket

FCBGA1296

CPU-Support-Typ

Atom, Celeron, Pentium

Speicher

Formfaktor

DDR3L

Standard Onboard Speicher

4 GB

Maximum Speicher

8 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Schnitstellen

DisplayPort, LVDS

Ethernet

Controller Typ

Intel i211-AT 10/100/1000 Mbps

10/100/1000 Mbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232/422/485

2

USB gesamt

4

USB v3.x

4

Digital Eingang / Ausgang

GPIO

4xDigital In / 4xDigital Out

Schnittstelle

SATA 3

1

M.2

1

SD Speicherkarten-Slots

1

Laufwerksschächte

Gesamtanzahl

1

2.5" extern

1

Steckplätze

Gesamtanzahl

3

M.2

1

M.2 Formfaktor

2242 B

Mini-PCIe/Mini Card

2

SIM-Karten Steckplätze

Yes, 2

Zusätzliche Funktionen

Watchdog-Timer-Typ

Software

Status LEDs / Schalter

LED

1xHDD LED, Power LED, WLAN LED, WWAN LED

Schalter

On/Off, 1xReset

Schnittstellen

Schnittstellen

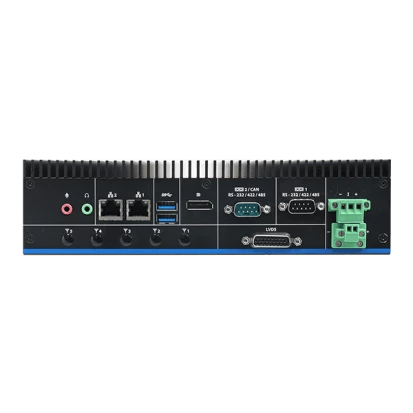

2xDB9, LVDS, 2xRJ45 Ethernet, 4xUSB, Display port, DC input (terminal block), DB15 GPIO, 2xLine Out, 2xMic In, 2xSIM Card Slot

Stromversorgung

Eingangsspannung DC

9 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Linux OS, Windows 10 IoT Enterprise, Windows 10

Maße und Gewicht

Breite

239 mm

Höhe

62 mm

Tiefe

186 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..70 °C

Normen und Zertifikate

Zertifizierungen

CE, FCC Class B

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Automotive

e13 Mark, ISO 7637

Maße

Bruttogewicht

3.2 kg

Nettogewicht

2.6 kg

Dokumente

VMS-APL-Series-Datasheet.pdf
