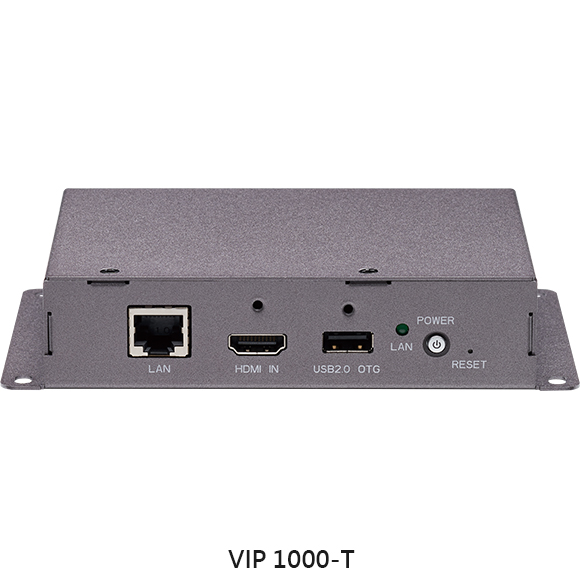

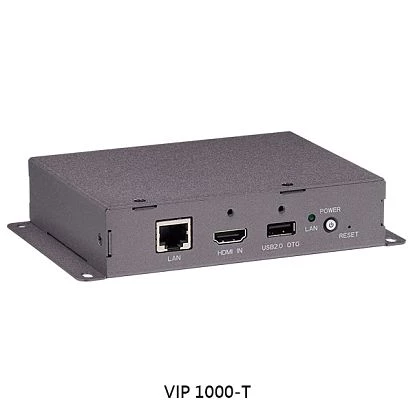

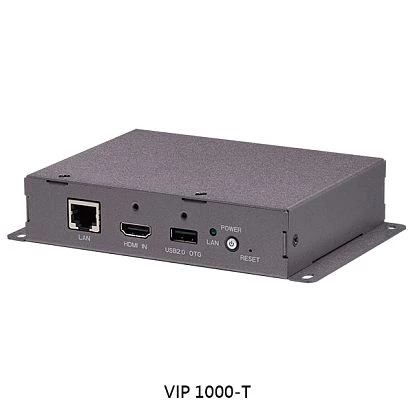

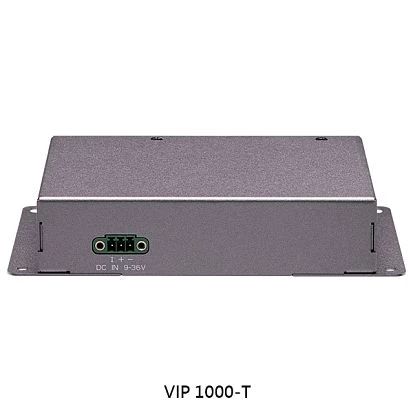

VIP-1000-T

VIP-1000-T

ART. NR.:: 57418900

HDMI extender over IP, Transmitter variation, 1xHDMI Type A, 1xGbE, 1xUSB 2.0 OTG, E13 mark, Phoenix connector 9..36V DC-in, 0..70C Operating temp.

Preis auf Anfrage

Ethernet

Ethernet gesamt

1

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

USB gesamt

1

USB 2.0

1

Schnittstellen

Schnittstellen

HDMI

Stromversorgung

Eingangsspannung DC

9..36 V

Maße und Gewicht

Breite

130 mm

Höhe

31 mm

Tiefe

100 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..70 °C

Vibration

Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Schock

Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Automotive

e13 Mark

Maße

Bruttogewicht

1.5 kg

Nettogewicht

0.5 kg

Dokumente

VIP-1000-Datasheet-05052023.pdf
