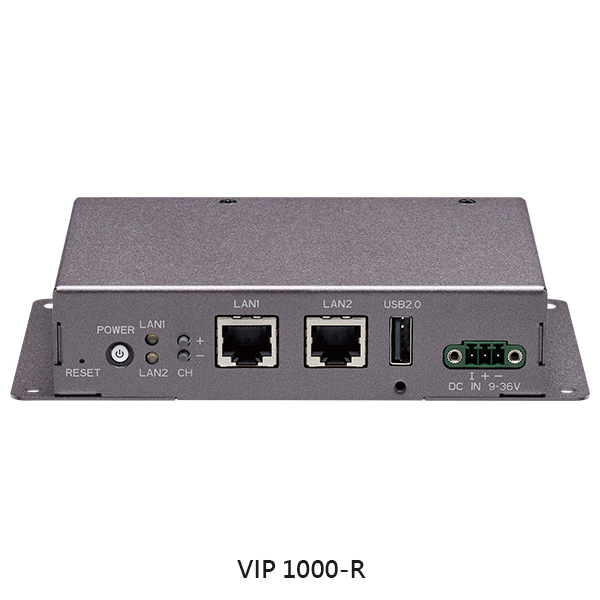

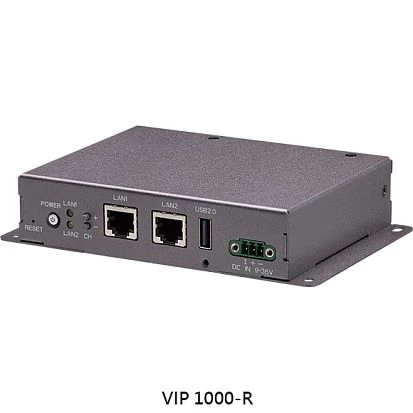

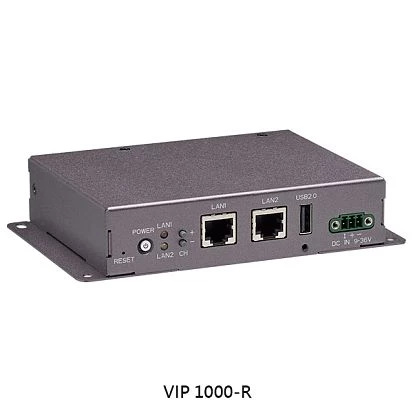

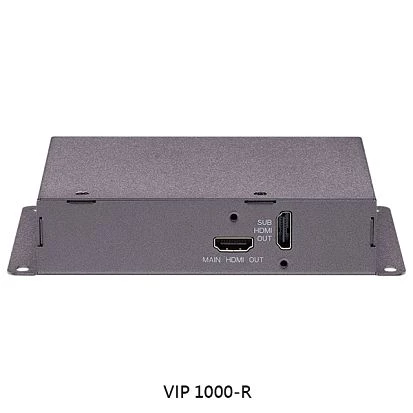

VIP-1000-R

VIP-1000-R

NEXCOM
ART. NR.:: 57418800
Full HD dual HDMI extender over IP, Receiver variation, 2xHDMI Type A, 2xGbE LAN, 1xUSB 2.0, E13 mark, 9-36VDC-in with Phoenix Connector, -20..70C Operating Temp.
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
USB gesamt
1
USB 2.0
1
Schnittstellen
Schnittstellen
2xHDMI
Stromversorgung
Eingangsspannung DC
9..36 V
Maße und Gewicht
Breite
130 mm
Höhe
31 mm
Tiefe
100 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..70 °C
Vibration
Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
Schock
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Maße
Bruttogewicht
0.7 kg
Nettogewicht
0.5 kg
