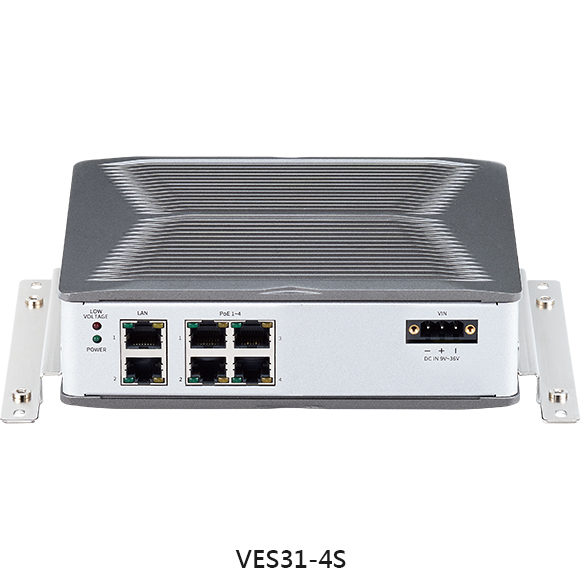

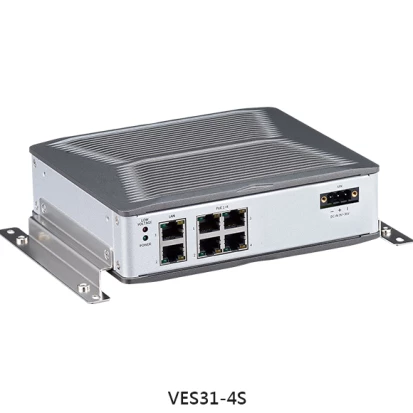

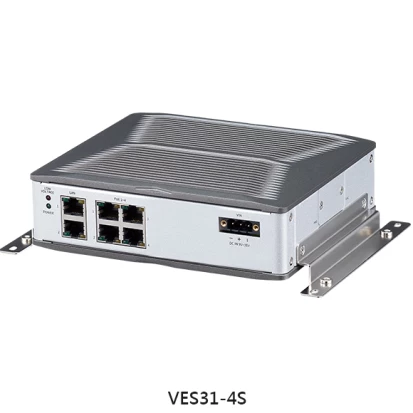

VES-31-4SR

Name:

NEXCOM

10/100/1000 Mbit/s:

6

Typ 10/100/1000 Mbit/s:

M12

IEEE Norm:

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)

MAC Table Size:

4000

LED:

Power LED, PoE LED, LAN LED

Schnittstellen:

6xM12

Eingangsspannung DC:

9 ... 36 V

Vibration:

Vibration (random): 2g@5~500 Hz;Operating: MIL-STD-810H, Method 514.8C Procedure 1, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810H, Method 514.8E Procedure 1, Category 24

Schock:

Operating: MIL-STD-810H, Method 516.8 Procedure I, trucks and semitrailers=40g - Non-Operating: MIL-STD-810H, Method 516.8 Procedure V, crash hazard shock test=75g

Temperaturbereich:

-40 ... 85 °C

Feuchtigkeit:

10 ... 90 % (non-condensing)

Breite:

211 mm

Höhe:

89 mm

Tiefe:

140 mm

Zertifizierungen:

CE, FCC Class A

MIL-STD-810:

MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration

Vibration und Schock:

IEC 61373

EMS:

EN 50121-1, EN 50121-3-2
