VBOX-3611-4L-D5G-Serie

SINTRONES
ART. NR.:: 57353100

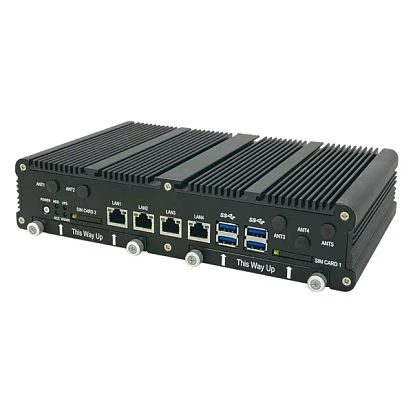

Embedded Computer, Intel Gen 6 Core i7/i5/i3/Celeron CPU, DDR4 2133MHz SO-DIMM up to 32GB RAM, 1xDVI-I, 1xDP, 1xVGA, 4xGbE LAN, 2xCOM, 4xM.2, 8xDIO, 2xFull MiniPCIe, 2xSIM, 4xUSB, 1xLine-in, 1xLine-out, 9..48V DC, -40..70C
Preis auf Anfrage
Verfügbar auf Bestellung
Verfügbar auf Bestellung
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
CPU
CPU Generation/Familie
Skylake
CPU-Support-Typ
Core i3, Core i5, Celeron, Core i7
Chipsatz
Chipsatz
Intel Skylake SoC
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
Maximum Speicher
32 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
Intel HD Graphics 510, Intel HD Graphics 520
Ethernet
Controller Typ
Intel i210-AT, Intel i219-LM
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
4
USB v3.x
4
Digital Eingang / Ausgang
Gesamtanzahl
8
Schnittstelle
RAID Levels
1, 5
Laufwerksschächte
Gesamtanzahl
2
2.5" extern
2
Steckplätze
Gesamtanzahl
6
M.2
4
Mini-PCIe/Mini Card
2
SIM-Karten Steckplätze
Yes, 2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Schnittstellen
DVI-I, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB9 DIO, 1xDP, 2xDB9 Male
Systemleistung
Eingangsspannung DC
9..48 V
Software
Betriebssystemkompatibilität
Windows 10, Ubuntu 18.04 LTS
Maße und Gewicht
Breite
250 mm
Höhe
150 mm
Tiefe
55 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..70 °C
Vibration
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Schock
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Explosionsschutz
EN 45545
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Bahnfahrzeuge
EN 50155
Automotive
e13 Mark
Automotive
E-Mark
Vibration und Schock
IEC 60068-2-64
Maße
Bruttogewicht
2.5 kg
Nettogewicht
2.16 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
CPU
CPU Generation/Familie
Skylake
CPU-Support-Typ
Core i3, Core i5, Celeron, Core i7
Chipsatz
Chipsatz
Intel Skylake SoC
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
Maximum Speicher
32 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
Intel HD Graphics 510, Intel HD Graphics 520
Ethernet
Controller Typ
Intel i210-AT, Intel i219-LM
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
4
USB v3.x
4
Digital Eingang / Ausgang
Gesamtanzahl
8
Schnittstelle
RAID Levels
1, 5
Laufwerksschächte
Gesamtanzahl
2
2.5" extern
2
Steckplätze
Gesamtanzahl
6
M.2
4
Mini-PCIe/Mini Card
2
SIM-Karten Steckplätze
Yes, 2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Schnittstellen
DVI-I, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB9 DIO, 1xDP, 2xDB9 Male
Systemleistung
Eingangsspannung DC
9..48 V
Software
Betriebssystemkompatibilität
Windows 10, Ubuntu 18.04 LTS
Maße und Gewicht
Breite
250 mm
Höhe
150 mm
Tiefe
55 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..70 °C
Vibration
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Schock
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Explosionsschutz
EN 45545
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Bahnfahrzeuge
EN 50155
Automotive
e13 Mark
Automotive
E-Mark
Vibration und Schock
IEC 60068-2-64
Maße
Bruttogewicht
2.5 kg
Nettogewicht
2.16 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
CPU
CPU Generation/Familie
Skylake
CPU-Support-Typ
Core i3, Core i5, Celeron, Core i7
Chipsatz
Chipsatz
Intel Skylake SoC
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
Maximum Speicher
32 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
Intel HD Graphics 510, Intel HD Graphics 520
Ethernet
Controller Typ
Intel i210-AT, Intel i219-LM
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
4
USB v3.x
4
Digital Eingang / Ausgang
Gesamtanzahl
8
Schnittstelle
RAID Levels
1, 5
Laufwerksschächte
Gesamtanzahl
2
2.5" extern
2
Steckplätze
Gesamtanzahl
6
M.2
4
Mini-PCIe/Mini Card
2
SIM-Karten Steckplätze
Yes, 2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Schnittstellen
DVI-I, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB9 DIO, 1xDP, 2xDB9 Male
Systemleistung
Eingangsspannung DC
9..48 V
Software
Betriebssystemkompatibilität
Windows 10, Ubuntu 18.04 LTS
Maße und Gewicht
Breite
250 mm
Höhe
150 mm
Tiefe
55 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..70 °C
Vibration
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Schock
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Explosionsschutz
EN 45545
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Bahnfahrzeuge
EN 50155
Automotive
e13 Mark
Automotive
E-Mark
Vibration und Schock
IEC 60068-2-64
Maße
Bruttogewicht
2.5 kg
Nettogewicht
2.16 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
CPU
CPU Generation/Familie
Skylake
CPU-Support-Typ
Core i3, Core i5, Celeron, Core i7
Chipsatz
Chipsatz
Intel Skylake SoC
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
Maximum Speicher
32 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
Intel HD Graphics 510, Intel HD Graphics 520
Ethernet
Controller Typ
Intel i210-AT, Intel i219-LM
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
4
USB v3.x
4
Digital Eingang / Ausgang
Gesamtanzahl
8
Schnittstelle
RAID Levels
1, 5
Laufwerksschächte
Gesamtanzahl
2
2.5" extern
2
Steckplätze
Gesamtanzahl
6
M.2
4
Mini-PCIe/Mini Card
2
SIM-Karten Steckplätze
Yes, 2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Schnittstellen
DVI-I, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB9 DIO, 1xDP, 2xDB9 Male
Systemleistung
Eingangsspannung DC
9..48 V
Software
Betriebssystemkompatibilität
Windows 10, Ubuntu 18.04 LTS
Maße und Gewicht
Breite
250 mm
Höhe
150 mm
Tiefe
55 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..70 °C
Vibration
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Schock
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Explosionsschutz
EN 45545
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Bahnfahrzeuge
EN 50155
Automotive
e13 Mark
Automotive
E-Mark
Vibration und Schock
IEC 60068-2-64
Maße
Bruttogewicht
2.5 kg
Nettogewicht
2.16 kg
