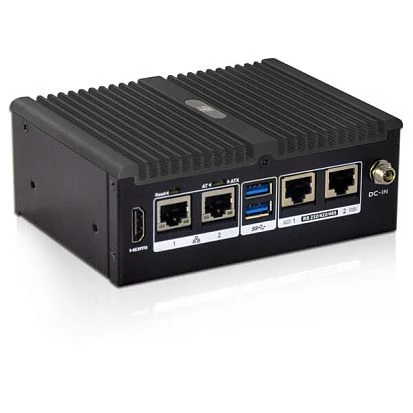

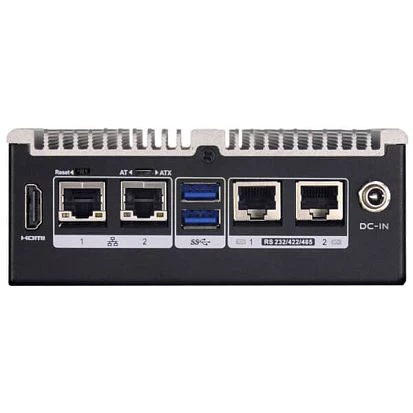

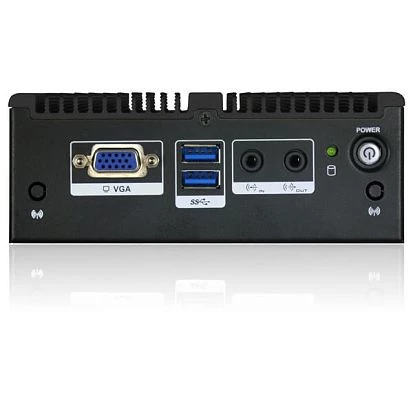

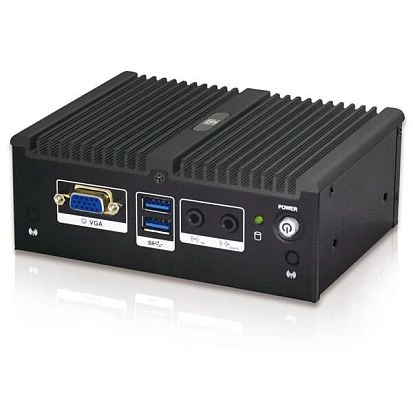

uIBX-250-BW-N3/2G

uIBX-250-BW-N3/2G

IEI
ART. NR.:: 56217700
Embedded Server with Intel Celeron N3160 1.63GHz, 2GB DDR3L RAM, 1xHDMI, 1xVGA, 2xGbit LAN, 2xCOM, 4xUSB, Audio, 1x2.5" HDD Drive Bay, 1xMini-PCIe, 12V DC-In (adapter 220V incl)
Abgekündigt

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall VESA 75
Typ
Lüfterlos
CPU
Installierter Prozessor
Intel Celeron N3160
Maximale CPU-Frequenz
2.24 GHz
Speicher
Formfaktor
DDR3L
Standard Onboard Speicher
2 GB
Maximum Speicher
8 GB
Ethernet
Controller Typ
Intel i211
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
4
USB v3.x
4
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen
DB15 VGA, HDMI, 4xRJ45, 4xUSB, DC Input
Stromversorgung
Eingangsspannung DC
0 V
Maße und Gewicht
Breite
136.6 mm
Höhe
52 mm
Tiefe
102.4 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..60 °C
Vibration
MIL-STD-810F 514.5 C-1(HDD), MIL-STD-810F 514.5 C-2(SSD)
Schock
Half-sine wave shock 5G, 11ms, 3 shocks per axis
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
1.81 kg
Nettogewicht
1.81 kg

Dokumente
Datasheet_UIBX_250__27682423.pdf
