tBOX500-510-FL-i3-TVDC

tBOX500-510-FL-i3-TVDC

AXIOMTEK
ART. NR.:: 08424100

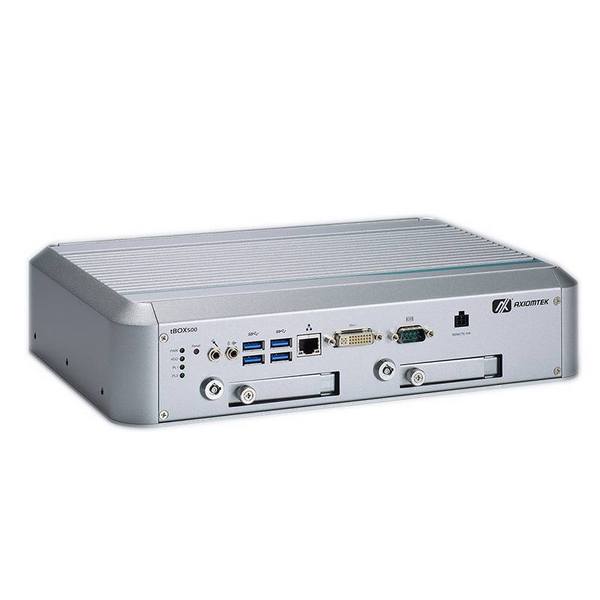

Fanless railway-grade embedded system with Intel Core i3-7100U 2.4GHz CPU, DDR4, DVI-I, GbE LAN, COM, 4xUSB 3.0, 2x2.5" SATA trays, mSATA, Audio, 9-36 V DC, -40...+70C
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse mit Aluminium-Kühlkörper
Einbaumöglichkeit
Wall, Desktop, Einbau
Schutzlevel Gehäuse
IP30
Typ
Lüfterlos
CPU
CPU Generation/Familie
Kaby Lake
Installierter Prozessor
Intel Core i3-7100U
Socket
CPU onboard
Maximale CPU-Frequenz
2.4 GHz
Speicher
Formfaktor
DDR4
Maximum Speicher
32 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i210-IT
10/100/1000 Mbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
1
USB gesamt
4
USB v3.x
4
Schnittstelle
mSATA
1
Laufwerksschächte
Gesamtanzahl
2
2.5" extern
2
Steckplätze
Gesamtanzahl
3
Mini-PCIe/Mini Card
3
SIM-Karten Steckplätze
2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Schnittstellen
DB9, DVI-I, RJ45, 4xUSB, Mic In, Line Out, DC Input
Stromversorgung
Eingangsspannung DC
9 V
Software
Betriebssystemkompatibilität
Linux OS, Windows 10
Maße und Gewicht
Breite
321 mm
Höhe
73.3 mm
Tiefe
210.2 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..70 °C
Vibration
3 Grms
Schock
50 Grms
Normen und Zertifikate
Zertifizierungen
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Bahnfahrzeuge
EN 50155, EN 50121-3-2, EN 45545-2
Internetsicherheit
DNV 2.4, IEC 60945 (4th), EN 60950-1
Automotive
ISO 7637-2, E-Mark
Maße
Bruttogewicht
4.5 kg
Nettogewicht
3.5 kg

Dokumente
Datasheet_tBOX500_510_FL__34470586.pdf
