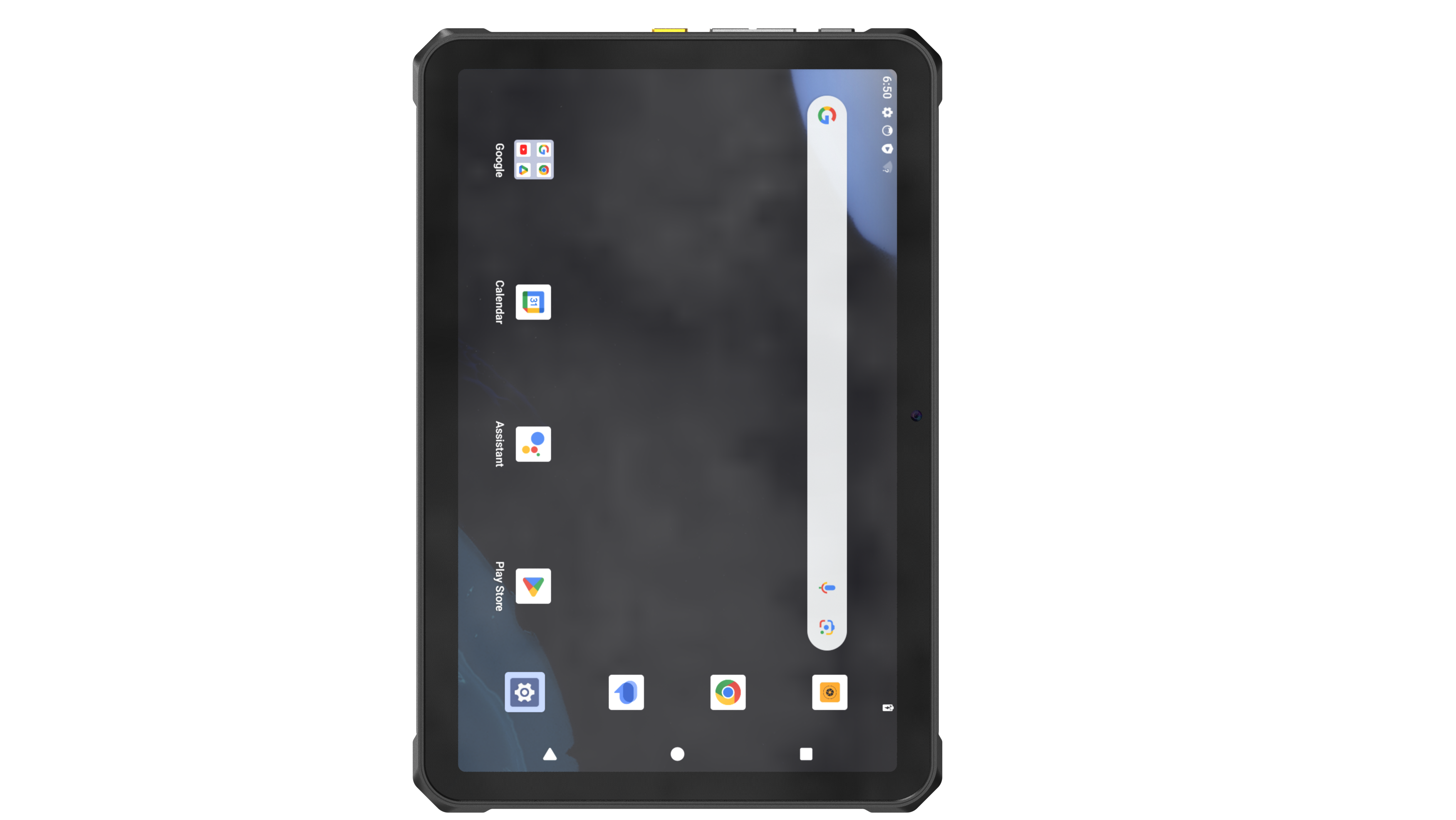

T2-Ultra

T2-Ultra

ART. NR.:: 80084400

10.95" Rugged IP68 Tablet PC, MIL-STD-810H, 1920x1200, 320 nits, PCAP Touch, MediaTek MT6878 SoC, 12GB LPDDR5 RAM, 256GB UFS3.1, 1xUSB-C, 5G, GPS, NFC, WiFi6E/BT5.4, TF/SIM, Face Unlock, Audio, 64/32MP R/F Cam, 20000mAh Bat., 33W Charger, Android 15

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse, Rugged Gehäuse

Schutzlevel Gehäuse

IP68

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

10.95 "

Maximale Auflösung

1200x1920 Dots

Seitenverhältnis

16:10

Helligkeit

450 Cd/m2

Touch Screen

Touch Screen Art

kapazitiv

CPU

Installierter Prozessor

MediaTek MT6878 (Dimensity 7300)

Socket

CPU onboard

Maximale CPU-Frequenz

2 GHz

Chipsatz

Chipsatz

SoC

Speicher

Formfaktor

DDR5

Socket Typ

Verlötet

ECC

No

Standard Onboard Speicher

12 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

integriert im Prozessor

Wi-Fi

WLAN IEEE-Norm

Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)

Schnittstellen Seriell / Parallel

USB gesamt

1

USB v3.x

1

Schnittstelle

MicroSD Speicherkarten-Slots

1

Einbauschacht

Massenspeicher Typ

Flash

Massenspeicher-Formfaktor

UFS

Massenspeicher 1. Kapazität

256 GB

Steckplätze

SIM-Karten Steckplätze

Yes, 2, Nano SIM

Zusätzliche Funktionen

Frontkamera

32 MP

Rückseitige Kamera

64 MP

GPS

GPS, GLONASS

NFC

Yes

Zusätzliche Sensoren

Lichtsensor, Barometer, Beschleunigungssensor (Gyroskop), E-compass

Antennen Eigenschaften

Mobilfunk

4G, 5G

Bluetooth

v5.4

Status LEDs / Schalter

Schalter

On/Off, Lautstärketasten

Schnittstellen

Schnittstellen

SIM Card Slot, USB type C

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Ausgangsleistung

33 W

Akku

Akku 1 Technologie

Li-pol

Akku 1 Kapazität

20000 mA*h

Akku 1 Hotswap

No

Software

Betriebssystem installiert

Android

Maße und Gewicht

Breite

263.41 mm

Höhe

178 mm

Tiefe

19.1 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..60 °C

Luftfeuchtigkeit

10-95%

Maße

Bruttogewicht

1.6 kg

Nettogewicht

1.2 kg

Dokumente

T2-Ultra-Datasheet.pdf
