SDM-4G-V

SDM-4G-V

ART. NR.:: 06390300

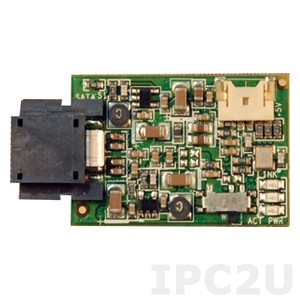

4GB SATADOM, MLC, SATA 2, Vertikal mount without housing, with 2-pin Power cable for header on systems DIN-PC 33xx

Preis auf Anfrage

Flash Disk

Typ

Disk On Module

Anschlussart/ Socket

7-pin SATA

Bauweise

Open-Frame

Positionierung

Vertical

Schnittstelle

SATA 2

Flash Speichertyp

MLC

Kapazität

4 GB

Übertragungsrate max

42 MB/s

Übertragungsrate Maximaler Schreibzugriff

6 MB/s

Stromversorgung

Eingangsspannung DC

5..5 V

Strom

481 mA

Betriebsbedingungen

Maximale Betriebstemperatur

0..70 °C

Luftfeuchtigkeit

10-90%

Vibration

20G (7~2000 Hz)

MTBF

3000000 h

Maße

Bruttogewicht

0.2 kg

Produktanfrage

ART. NR.:: 06390300

SDM-4G-V
