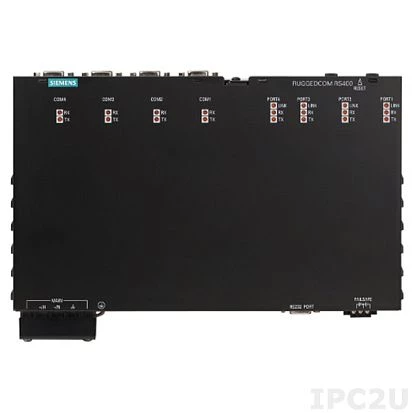

RUGGEDCOM-RS400

Siemens AG
ART. NR.:: 57392900
RUGGEDCOM RS400 Rackmount Managed Layer 2 Ethernet Switch, IP40, up to 4x10/100Base-X, Optional up to 4x RS485/RS422/RS232 DB9 or RJ45 or Terminal Connector, Optional 24 VDC, 48 VDC or HI Power, Wide Temp. -40..85C
Preis auf Anfrage
Verfügbar
Verfügbar
System configuration
Price inkl. MwSt.
Preis auf Anfrage
System configuration
Price inkl. MwSt.
Preis auf Anfrage
Ethernet
10/100 Mbit/s
4
Typical Distance
90 km
Schnittstellen Seriell / Parallel
RS-232/422/485
4
Netzwerk
Steuerungsprotokolle
SNMPv1/v2c/v3, SNTP, GVRP, RMON, TFTP, TCP
Reservierungs-Protokolle
RSTP
Sicherheitsprotokolle
RADIUS, SSL, TACACS+
IEEE Norm
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Switch Properties
MAC Table Size
16000
Systemleistung
Eingangsspannung DC
88..300 V
Eingangsspannung AC
85..265 V
Betriebsbedingungen
Maximale Betriebstemperatur
-40..85 °C
Luftfeuchtigkeit
5-95%
Aufbau
Schutzlevel Gehäuse
IP40
Maße und Gewicht
Breite
202 mm
Tiefe
44 mm
Höhe
291 mm
Maße
Bruttogewicht
2 kg
Nettogewicht
1.7 kg
Ethernet
10/100 Mbit/s
4
Typical Distance
90 km
Schnittstellen Seriell / Parallel
RS-232/422/485
4
Netzwerk
Steuerungsprotokolle
SNMPv1/v2c/v3, SNTP, GVRP, RMON, TFTP, TCP
Reservierungs-Protokolle
RSTP
Sicherheitsprotokolle
RADIUS, SSL, TACACS+
IEEE Norm
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Switch Properties
MAC Table Size
16000
Systemleistung
Eingangsspannung DC
88..300 V
Eingangsspannung AC
85..265 V
Betriebsbedingungen
Maximale Betriebstemperatur
-40..85 °C
Luftfeuchtigkeit
5-95%
Aufbau
Schutzlevel Gehäuse
IP40
Maße und Gewicht
Breite
202 mm
Tiefe
44 mm
Höhe
291 mm
Maße
Bruttogewicht
2 kg
Nettogewicht
1.7 kg
Ethernet
10/100 Mbit/s
4
Typical Distance
90 km
Schnittstellen Seriell / Parallel
RS-232/422/485
4
Netzwerk
Steuerungsprotokolle
SNMPv1/v2c/v3, SNTP, GVRP, RMON, TFTP, TCP
Reservierungs-Protokolle
RSTP
Sicherheitsprotokolle
RADIUS, SSL, TACACS+
IEEE Norm
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Switch Properties
MAC Table Size
16000
Systemleistung
Eingangsspannung DC
88..300 V
Eingangsspannung AC
85..265 V
Betriebsbedingungen
Maximale Betriebstemperatur
-40..85 °C
Luftfeuchtigkeit
5-95%
Aufbau
Schutzlevel Gehäuse
IP40
Maße und Gewicht
Breite
202 mm
Tiefe
44 mm
Höhe
291 mm
Maße
Bruttogewicht
2 kg
Nettogewicht
1.7 kg
Ethernet
10/100 Mbit/s
4
Typical Distance
90 km
Schnittstellen Seriell / Parallel
RS-232/422/485
4
Netzwerk
Steuerungsprotokolle
SNMPv1/v2c/v3, SNTP, GVRP, RMON, TFTP, TCP
Reservierungs-Protokolle
RSTP
Sicherheitsprotokolle
RADIUS, SSL, TACACS+
IEEE Norm
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Switch Properties
MAC Table Size
16000
Systemleistung
Eingangsspannung DC
88..300 V
Eingangsspannung AC
85..265 V
Betriebsbedingungen
Maximale Betriebstemperatur
-40..85 °C
Luftfeuchtigkeit
5-95%
Aufbau
Schutzlevel Gehäuse
IP40
Maße und Gewicht
Breite
202 mm
Tiefe
44 mm
Höhe
291 mm
Maße
Bruttogewicht
2 kg
Nettogewicht
1.7 kg
