RT101-Ruby-10-Tablet-M

RT101-Ruby-10-Tablet-M

Arbor
ART. NR.:: 80096400

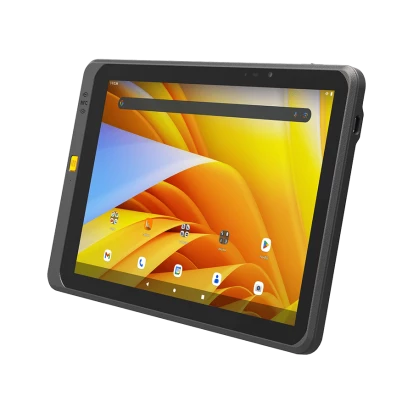

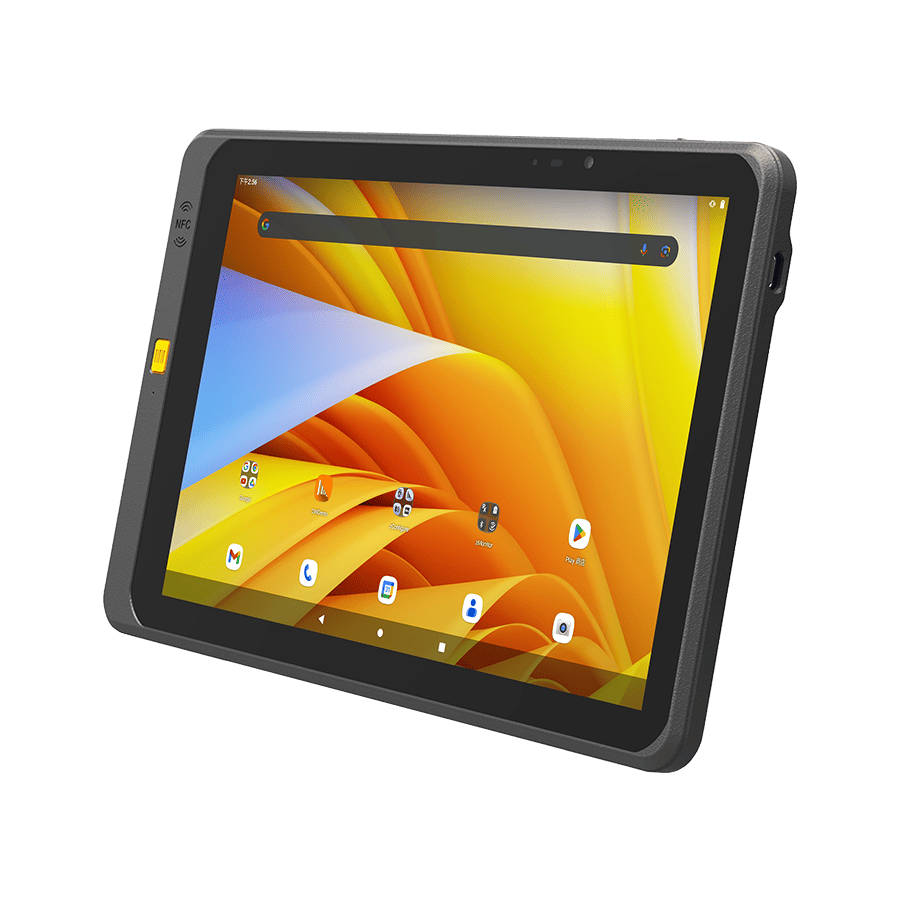

10.1" Rugged Ruby-10 Tablet PC, IP65, 1280x800, 520cd/m2, PCAP Touch, MediaTek MT8781 CPU, 8GB LPDDR4x RAM, 64GB UFS2.2, 1xUSB-C, MicroSD, 13/8MP Cam, WiFi6E/BT5.4, LTE, NFC, GPS, Barcode Opt., 6600mAh Hot-Swap Bat, with PSU, Android 14
Preis auf Anfrage
Verfügbar
Verfügbar

System configuration
Preis exkl. MwSt.
Preis auf Anfrage
Preis auf Anfrage

Aufbau
Gehäuse
Metallgehäuse, Rugged Gehäuse
Schutzlevel Gehäuse
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
10.1 "
Maximale Auflösung
1280x800 Dots
Seitenverhältnis
16:10
Helligkeit
520 Cd/m2
Touch Screen
Touch Screen Art
kapazitiv
CPU
Installierter Prozessor
MediaTek MT8781
Socket
CPU onboard
Maximale CPU-Frequenz
2.2 GHz
Chipsatz
Chipsatz
SoC
Speicher
Formfaktor
DDR4
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
8 GB
Maximum Speicher
8 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Wi-Fi
WLAN IEEE-Norm
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Schnittstellen Seriell / Parallel
USB gesamt
1
USB v3.x
1
Schnittstelle
MicroSD Speicherkarten-Slots
1
Einbauschacht
Massenspeicher Typ
Flash
Massenspeicher-Formfaktor
UFS
Massenspeicher 1. Kapazität
64 GB
Steckplätze
SIM-Karten Steckplätze
Yes, 2, Nano SIM
Zusätzliche Funktionen
Frontkamera
8 MP
Rückseitige Kamera
13 MP
GPS
GPS, GLONASS
Barcode Scanner
Optional
NFC
Yes
Zusätzliche Sensoren
Lichtsensor, Beschleunigungssensor (Gyroskop), Beschleunigungssensor (Gyroskop), E-compass
Antennen Eigenschaften
Mobilfunk
4G
Bluetooth
v5.4
Status LEDs / Schalter
Schalter
On/Off, Lautstärketasten
Schnittstellen
Schnittstellen
USB type C
Docking Station
Ja
Stromversorgung
Eingangsspannung DC
5..9 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Ausgangsleistung
18 W
Akku
Akku 1 Technologie
Li-ion
Akku 1 Kapazität
180 mA*h
Akku 1 Hotswap
No
Akku 2 Technologie
Li‑ion
Akku 2 Kapazität
6600 mA*h
Akku 2 Hotswap
Yes
Software
Betriebssystem installiert
Android
Maße und Gewicht
Breite
268.2 mm
Höhe
171.9 mm
Tiefe
12.3 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..50 °C
Luftfeuchtigkeit
10-90%
Normen und Zertifikate
Zertifizierungen
CE, FCC
Internetsicherheit
NCC
Maße
Bruttogewicht
1.05 kg
Nettogewicht
0.7 kg

Dokumente
RT101-Ruby-Datasheet.pdf
