R-9017C2H

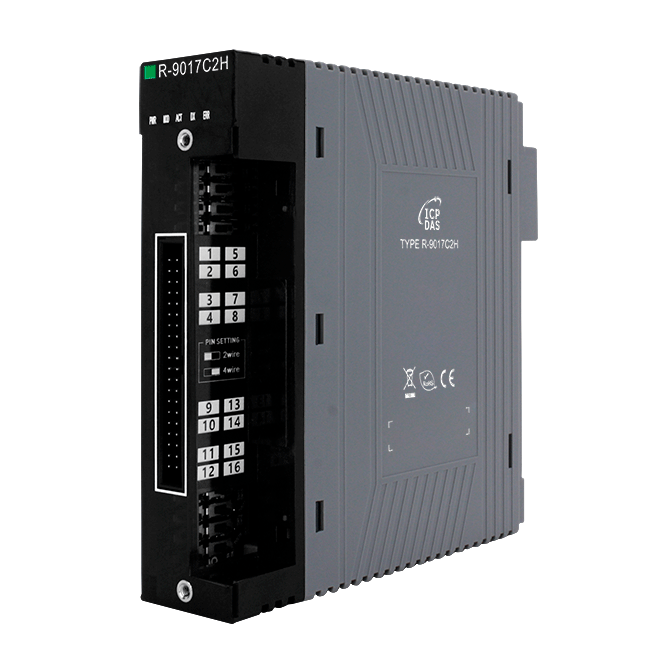

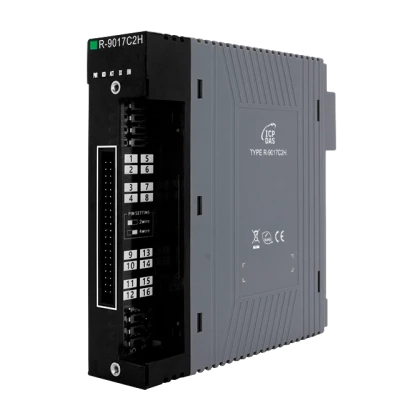

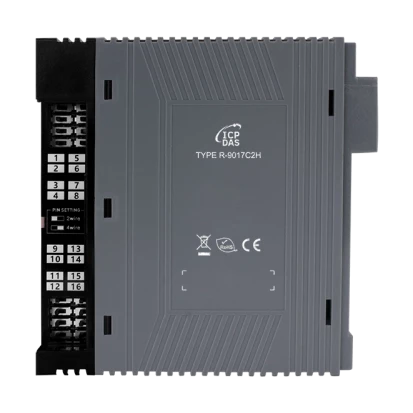

R-9017C2H

ICP DAS
ART. NR.:: 80042100
Isolated Current Input Redundant Module with HART Master Interface, 16xChannels Analog Input, 4..20mA, Operating Temperature -25..70 C
Preis auf Anfrage
Verfügbar
Verfügbar

Analog Eingang
Anzahl
16
Stromeingang
4...20 mA, HART
Maße und Gewicht
Breite
33 mm
Tiefe
129 mm
Höhe
130 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..70 °C
Normen und Zertifikate
EMS
IEC 61000-4-2, IEC 61000-4-4
Maße
Bruttogewicht
3 kg
Nettogewicht
2 kg

Dokumente
R-9017C2H-Datasheet.pdf

Produktanfrage

ICP DAS
ART. NR.:: 80042100
R-9017C2H
R-9017C2H
R-9017C2H
R-9017C2H
R-9017C2H
R-9017C2H
