PPC-Z153PW-B62A1

PPC-Z153PW-B62A1

Arestech
ART. NR.:: 57028600

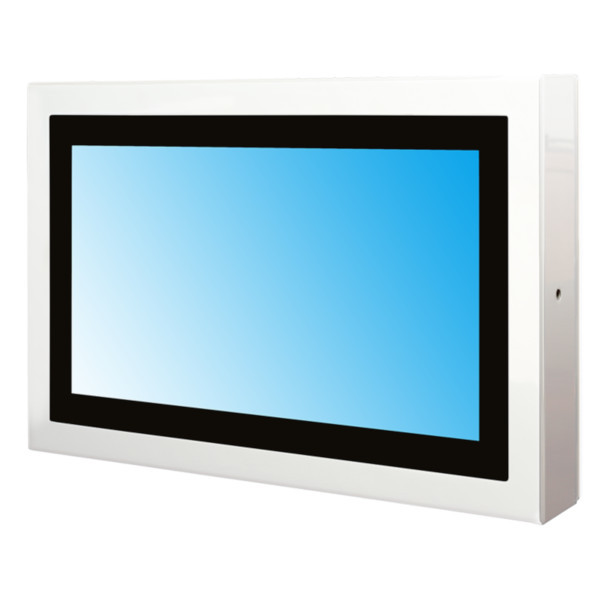

15.6" Fanless Panel PC, Stainless Steel 316 Full IP66/69K, 450 cd/m2, 1920 x 1080, PCAP Touch Screen, Intel Pentium N4200 1.1 GHz CPU, 4GB RAM, 64GB SSD, 2x Gbit LAN, 2xUSB, 2xCOM, 9.36V DC-In(M12 Connector)
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Einbaumöglichkeit
Panel, Wall VESA 100, Wall VESA 75
Schutzlevel Frontseite (Panel)
IP66
Typ
Lüfterlos
Display
Bildschirmtyp
LCD
Diagonale
15.6 "
Maximale Auflösung
1920x1080 Dots
Seitenverhältnis
16:9
Helligkeit
450 Cd/m2
Kontrastverhältnis
800~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Apollo Lake
Installierter Prozessor
Intel Pentium N4200
Maximale CPU-Frequenz
2.5 GHz
Speicher
Formfaktor
DDR3L
Maximum Speicher
8 GB
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
2
USB 2.0
2
Schnittstelle
M.2
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen
2xDB9, 2xRJ45 Ethernet, 2xUSB, Line Out, DC Input
Stromversorgung
Eingangsspannung DC
9..36 V
Stromverbrauch
14.46 W
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Linux OS, Windows 10 IoT Enterprise
Maße und Gewicht
Breite
435 mm
Höhe
293 mm
Tiefe
66.9 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Schock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Maße
Bruttogewicht
11 kg
Nettogewicht
7.42 kg

Dokumente
Datasheet_PPC_Z153PW__35369749.pdf
