Name: PCOM-B632VG-E3845
Brand: Portwell
SKU: 07944500
Price: 185.7 EUR
Availability: PreOrder

Home

Catalog

Industrielle Mainboards

Embedded Module und System-On-Module

COM Express Module

PCOM-B632VG-E3845

Portwell

ART. NR.:: 07944500

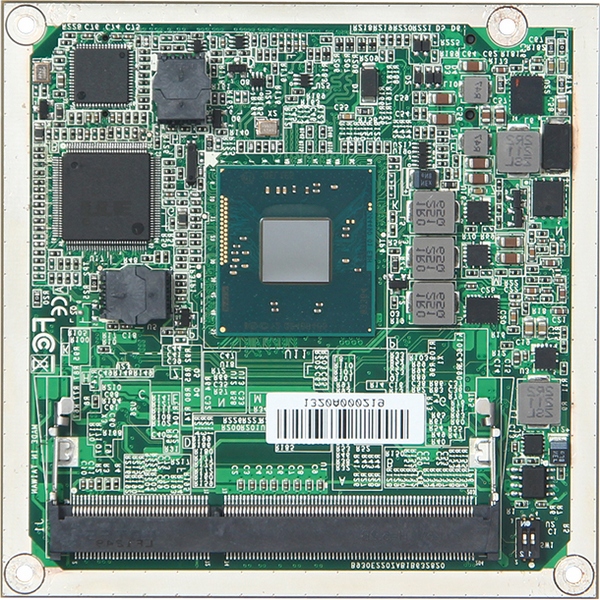

Based Type 6 COM Express module with Intel Bay Trail-I E3845 1.91GHz, DDR3L SDRAM, VGA, LVDS/eDP, DP, Gigabit Ethernet, 2xCOM, 6xUSB 3.0, 1xUSB 3.0, 1xSATA 2.0, MicroSD, PCI-Express x4

Preis auf Anfrage

Systemarchitektur

Formfaktor

COM Express Compact

Aufbau

Typ

Lüfterlos

CPU

Installierter Prozessor

Intel Atom E3845

Socket

CPU onboard

Maximale CPU-Frequenz

1.91 GHz

Chipsatz

Intel Bay Trail-I SoC

Speicher

Formfaktor

DDR3L

Socket Typ

1xSODIMM

Maximum Speicher

8 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Schnitstellen

DisplayPort, LVDS, VGA

Ethernet

Controller Typ

Intel i210-IT

10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

COM gesamt

USB 2.0

USB v3.x

Digital Eingang / Ausgang

Gesamtanzahl

Audio

Audio Controller

Intel HD Audio

Schnittstelle

MicroSD Speicherkarten-Slots

Steckplätze

PCI Express x1

Zusätzliche Funktionen

Watchdog-Timer-Typ

Software

Maße und Gewicht

Breite

95 mm

Länge

95 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..80 °C

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

1.1 kg

Nettogewicht

0.7 kg

Dokumente

Datasheet_PCOM_B632VG__32961118.pdf

Produktanfrage

Portwell

ART. NR.:: 07944500
