P6151OR-DC-U

P6151OR-DC-U

ART. NR.:: 07142300

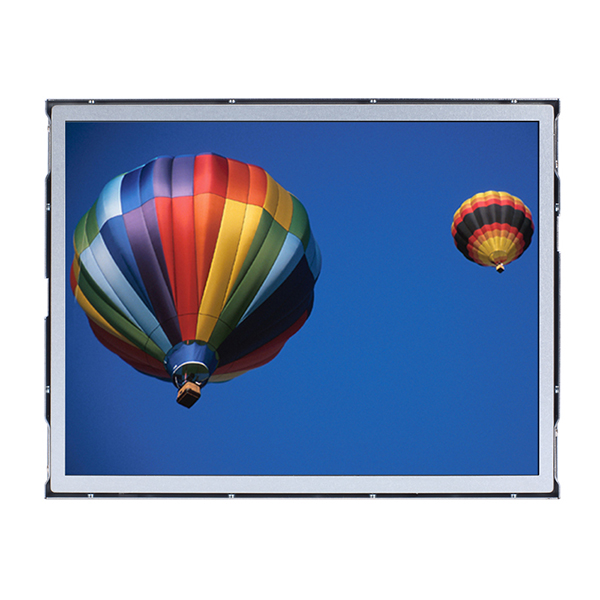

Open Frame 15" TFT 420 nits XGA LCD, resistive touch screen (USB), 1024x768, 1xVGA, 1xDVI-D, HDMI, power supply 12-24V DC

Abgekündigt

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Einbau, Wall VESA 100

Display

Bildschirmtyp

LCD TFT

Diagonale

15 "

Maximale Auflösung

1024x768 Dots

Helligkeit

420 Cd/m2

Kontrastverhältnis

800~1

Input Schnittstelle

HDMI, VGA, DVI-D

Touch Screen

Touch Screen Art

resistiv

Schnittstelle

USB

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off, Tastenfeld

Schnittstellen

Schnittstellen

DVI-D, DB15 VGA, HDMI, 1xUSB, DC Input

Stromversorgung

Eingangsspannung DC

12..24 V

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Maße und Gewicht

Breite

335 mm

Höhe

261.5 mm

Tiefe

58.5 mm

Normen und Zertifikate

Zertifizierungen

CE

Maße

Bruttogewicht

6 kg

Nettogewicht

5 kg

Dokumente

Datasheet_P6151O__27770123.pdf
