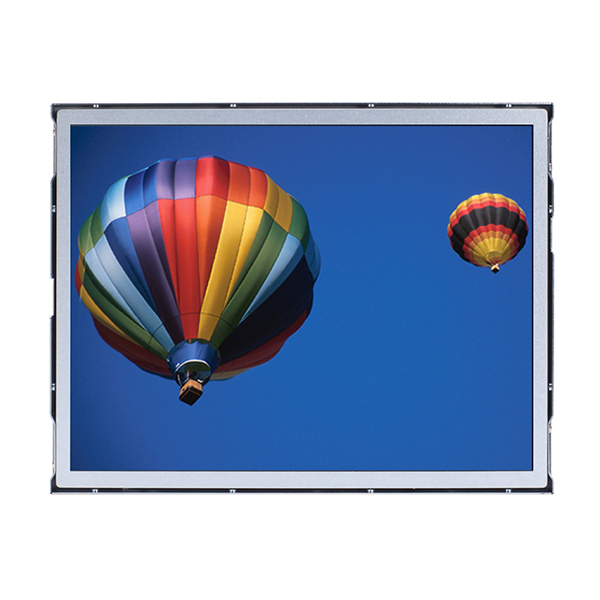

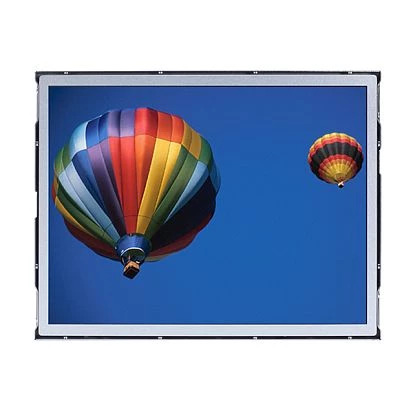

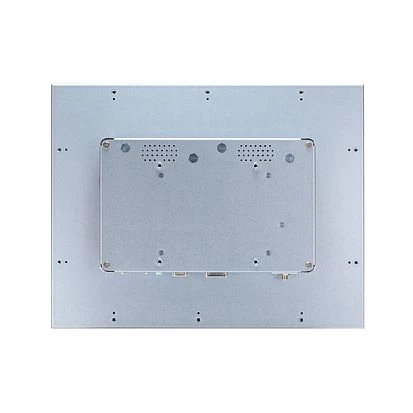

P6101OR-DC-U

P6101OR-DC-U

ART. NR.:: 07464500

10.4" TFT 350 nits XGA LCD, 1024x768, resistive touch screen (USB), 1xVGA, 1xDVI-D, HDMI, power supply DC

Abgekündigt

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Wall, Panel, Einbau, Wall VESA 100

Display

Bildschirmtyp

LCD TFT

Diagonale

10.4 "

Maximale Auflösung

1024x768 Dots

Seitenverhältnis

4:3

Helligkeit

350 Cd/m2

Kontrastverhältnis

900~1

Input Schnittstelle

HDMI, VGA, DVI-D

Touch Screen

Touch Screen Art

resistiv

Schnittstelle

USB

Status LEDs / Schalter

Schalter

Kontrolltasten

Schnittstellen

Schnittstellen

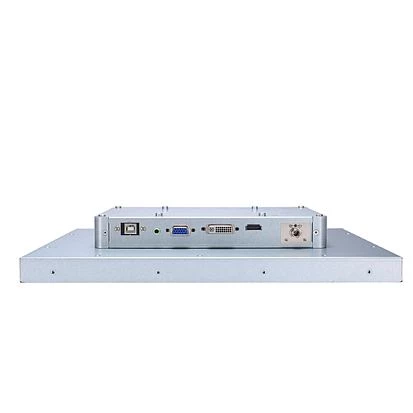

DVI-D, DB15 VGA, HDMI, Line In, DC Input, USB Type B

Stromversorgung

Eingangsspannung DC

12..24 V

Betriebsbedingungen

Maximale Betriebstemperatur

-10..55 °C

Maße und Gewicht

Breite

246.3 mm

Höhe

192.3 mm

Tiefe

44.9 mm

Normen und Zertifikate

Zertifizierungen

CE

Maße

Bruttogewicht

3 kg

Nettogewicht

3 kg

Dokumente

Datasheet_P6101O__31532909.pdf

Antrag auf Ersetzung

ART. NR.:: 07464500

P6101OR-DC-U

P6101OR-DC-U

P6101OR-DC-U
