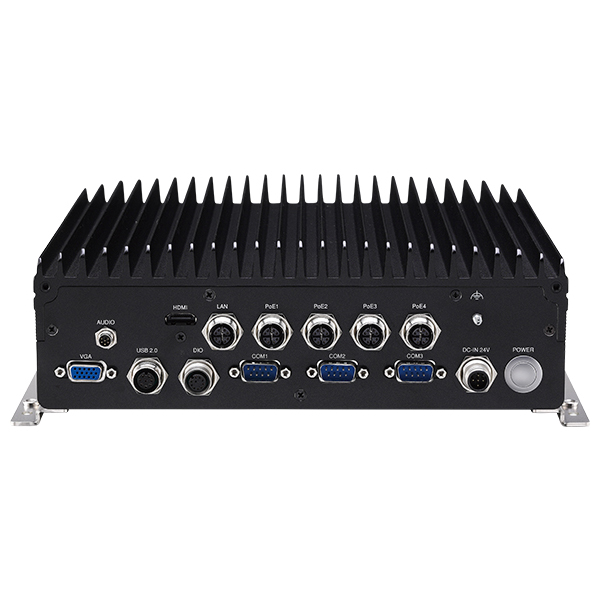

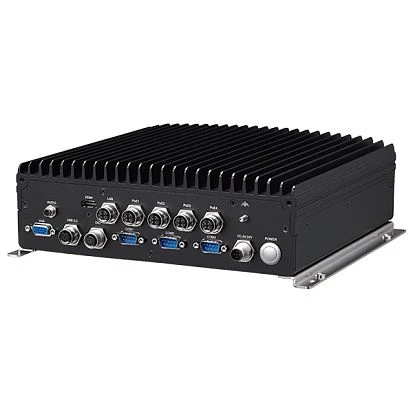

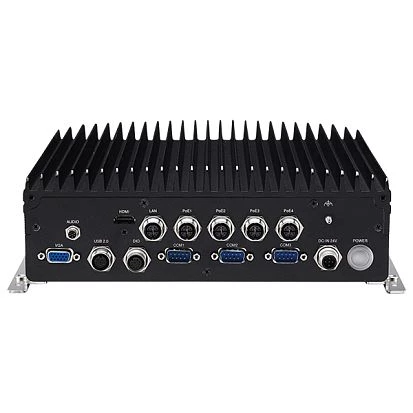

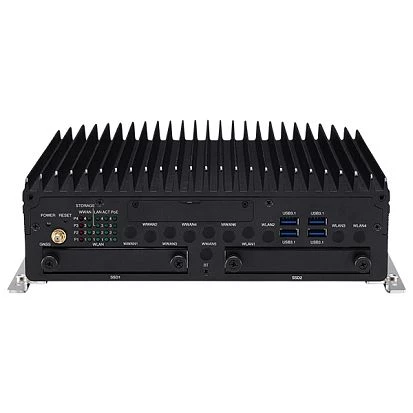

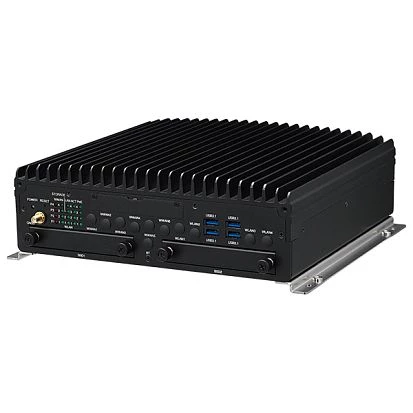

nROK-7251-7C4

nROK-7251-7C4

ART. NR.:: 09111500

Embedded Railway Fanless PC, Intel Core i7-9700TE 1.8GHz, DDR4, VGA, HDMI, 4xM12 PoE 802.3af/at, 1xM12 GbE LAN, 3xCOM, 4xUSB 3.1, 2xUSB 2.0 (M12), 3xWWAN, 6xSIM, 2x2.5" SATA, 3x miniPCIe (2x mSATA), 2xM.2 Key-B, 24VDC-in

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Wall, Desktop, Einbau

Typ

Lüfterlos

CPU

Installierter Prozessor

Intel Core i7-9700TE

Maximale CPU-Frequenz

3.8 GHz

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

Standard Onboard Speicher

8 GB

Maximum Speicher

64 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor, Intel UHD Graphics 630

Ethernet

Ethernet gesamt

5

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

3

RS-232

1

RS-232/422/485

2

USB gesamt

6

USB 2.0

2

USB v3.x

4

Digital Eingang / Ausgang

Gesamtanzahl

8

Audio

Audio Controller

Intel HD Audio

Schnittstelle

RAID Levels

1

mSATA

1

Laufwerksschächte

Gesamtanzahl

2

2.5" intern

2

Steckplätze

Gesamtanzahl

5

M.2

2

Mini-PCIe/Mini Card

3

SIM-Karten Steckplätze

6

Antennen Eigenschaften

Mobilfunk

3G

Zusätzliche Funktionen

GPS

GPS

Schnittstellen

Schnittstellen

3xDB9, DB15 VGA, HDMI, 4xUSB, 1xSMA (GPS antenna connector), M12 USB, M12 Audio, M12 DC-in, 8-pin M12 Ethernet, 4x8-pin M12 LAN

Stromversorgung

Eingangsspannung DC

24..24 V

Software

Betriebssystemkompatibilität

Linux OS, Windows 10

Maße und Gewicht

Breite

279.12 mm

Höhe

89.5 mm

Tiefe

256 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..70 °C

Vibration

2g @5~500 Hz

Schock

20g

Normen und Zertifikate

Zertifizierungen

CE, FCC Class B

MIL-STD-810

MIL-STD-810F Test Method 516.5 Crash Hazard, MIL-STD-810F Test Method 514.5 Highway Truck

Bahnfahrzeuge

EN 50155, EN 45545

Automotive

e13 Mark

Maße

Bruttogewicht

5.5 kg

Nettogewicht

4.5 kg

Dokumente

nROK-7251-7C4-Datasheet-10252023.pdf
