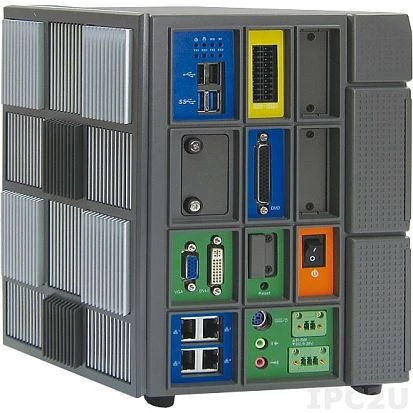

NISE-4000

NISE-4000

NEXCOM
ART. NR.:: 06419200
(Sales last 1pc) Embedded Server, Support Intel 3rd Gen. Core-i3/i5, Intel QM77 Chipset, up to 8GB DDR3 RAM, VGA, DVI-I, 4xGb LAN, 2xUSB 3.0, 2xUSB 2.0, 2xCOM, 16xDI/16xDO, Audio, CFast Socket, 2x 2.5" SATA HDD Bays, 2xMini-PCIe, 24V DC-In
Abgekündigt

Aufbau
Einbaumöglichkeit
Wall, Desktop
Typ
Lüfterlos
CPU
CPU-Support-Typ
Core i3, Core i5
Speicher
Formfaktor
DDR3
Maximum Speicher
8 GB
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel 82574L 10/100/1000 Mbps, Intel 82579LM 10/100/1000Mbps
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
4
USB 2.0
2
USB v3.x
2
Schnittstelle
CFast Speicherkarten-Slots
1
Laufwerksschächte
Gesamtanzahl
2
2.5" extern
2
Steckplätze
Gesamtanzahl
2
Mini-PCIe/Mini Card
2
Schnittstellen
Schnittstellen
DB44, DVI-I, DB15 VGA, PS/2 Keyboard/Mouse, 4xRJ45, 4xUSB, Mic In, Line Out, DC Input, 2xCOM (terminal block)
Stromversorgung
Eingangsspannung DC
24 V
Software
Betriebssystemkompatibilität
Windows XP, Windows 7, Windows 8
Maße und Gewicht
Breite
178 mm
Höhe
255 mm
Tiefe
250 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..55 °C
Vibration
Random: 0.5Grms @ 5 ~ 500 Hz
Schock
HDD: 20G, half sine, 11ms
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
5 kg

Dokumente
NISE_4000__27671414.pdf
