NDiS-B323

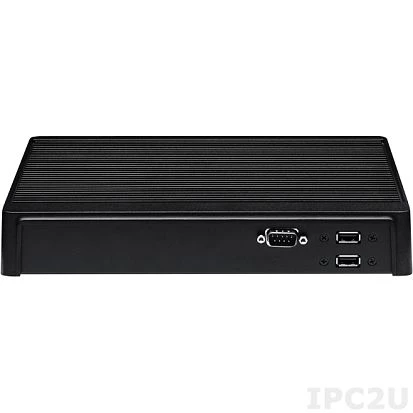

NDiS-B323

NEXCOM
ART. NR.:: 06384400
Network Digital Signage Player, Intel Celeron 1037U 1.8GHz CPU, up to 8GB DDR3 RAM, VGA, HDMI, Gb LAN, 2xUSB 2.0, 2xUSB 3.0, Audio, 2.5" SATA HDD Bay, Mini-PCIe, 65W External Power Adapter
Abgekündigt

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Desktop, Einbau
Typ
Lüfterlos
CPU
Installierter Prozessor
Intel Celeron 847
Maximale CPU-Frequenz
1.1 GHz
Speicher
Formfaktor
DDR3
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
10/100/1000 Mbit/s
1
Schnittstellen Seriell / Parallel
USB gesamt
2
USB 2.0
1
USB v3.x
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Gesamtanzahl
1
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen
DB15 VGA, HDMI, RJ45 Ethernet, 2xUSB, Line In, Line Out, DC Input
Stromversorgung
Eingangsspannung DC
19 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Ausgangsleistung
65 W
Software
Betriebssystemkompatibilität
Windows XP, Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 2009, Linux OS
Maße und Gewicht
Breite
250 mm
Höhe
40 mm
Tiefe
194 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..40 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
2 kg
Nettogewicht
0.5 kg

Dokumente
NDiSB323__23615203.pdf

Antrag auf Ersetzung

NEXCOM
ART. NR.:: 06384400
NDiS-B323
