M10J-M

M10J-M

ONERugged
ART. NR.:: 57777900

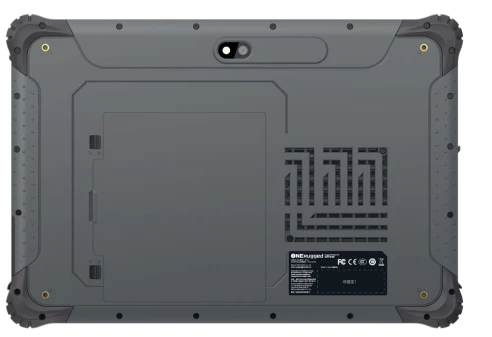

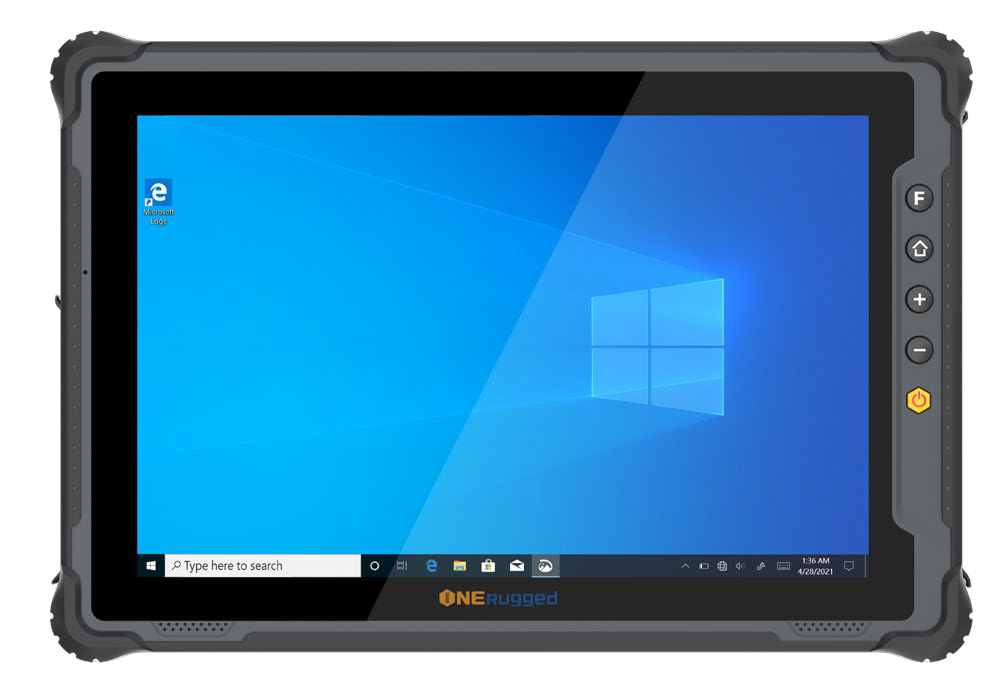

10.1" Rugged IP65 Tablet PC,Intel Celeron N5100,1280x800 or 1920x1200, 700 nits, 8GB LDDR4, 128GB eMMC, USB3.0, USB-C, Mini-HDMI, Optional: LAN/COM/USB, NFC, LTE/GPS WiFi(2.4/5G)/BT5.0, 8.0/5.0 MP Cam, 5000mAh, Win 11 or Win 10 Pro/IoT
Preis auf Anfrage
Verfügbar
Verfügbar

System configuration
Preis exkl. MwSt.
Preis auf Anfrage
Preis auf Anfrage
Preis auf Anfrage
Preis auf Anfrage
Warranty
Preis auf Anfrage

Aufbau
Gehäuse
Rugged Gehäuse, Aluminiumgehäuse
Schutzlevel Frontseite (Panel)
IP65
Schutzlevel Gehäuse
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD IPS
Diagonale
10.1 "
Maximale Auflösung
1280x800 Dots
Seitenverhältnis
16:10
Helligkeit
700 Cd/m2
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Jasper Lake
Installierter Prozessor
Intel Celeron N5100
CPU-Support-Typ
Celeron
Maximale CPU-Frequenz
2.8 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR4
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
8 GB
Maximum Speicher
8 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor, Intel UHD Graphics
Schnitstellen
HDMI
Wi-Fi
WLAN IEEE-Norm
802.11a/b/g/n/ac
Schnittstellen Seriell / Parallel
USB gesamt
2
USB v3.x
2
Schnittstelle
MicroSD Speicherkarten-Slots
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
eMMC
Massenspeicher 1. Kapazität
128 GB
Steckplätze
SIM-Karten Steckplätze
Yes, 1, Micro-SIM
Zusätzliche Funktionen
Frontkamera
5 MP
Rückseitige Kamera
8 MP
GPS
Optional
NFC
Optional
Zusätzliche Sensoren
Beschleunigungssensor (Gyroskop)
Antennen Eigenschaften
Mobilfunk
4G
Bluetooth
v5.0
Status LEDs / Schalter
LED
Batterie Status, Power LED
Schalter
On/Off, Funktionstasten, Lautstärketasten
Schnittstellen
Schnittstellen
MicroSD card slot, Mini HDMI, Jack 3.5, USB Type A, Micro-SIM card slot, USB type C
Docking Station
Ja
Stromversorgung
Eingangsspannung DC
19..19 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Akku
Akku 1 Technologie
Li-ion
Akku 1 Kapazität
5000 mA*h
Laufzeitbatterie 1
5 h
Akku 1 Hotswap
No
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Windows 10
Betriebssystem installiert
Windows 11
Maße und Gewicht
Breite
274.9 mm
Höhe
188.7 mm
Tiefe
22.2 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..60 °C
Luftfeuchtigkeit
5-95%
Temperatur (Lagerung)
-30~+70
Normen und Zertifikate
MIL-STD-810
MIL-STD-810G Test Method 516.4 Drop 120 cm
Maße
Bruttogewicht
1.4 kg
Nettogewicht
1.1 kg

Dokumente
M10J-10inch-tablet-datasheet-05092023.pdf
